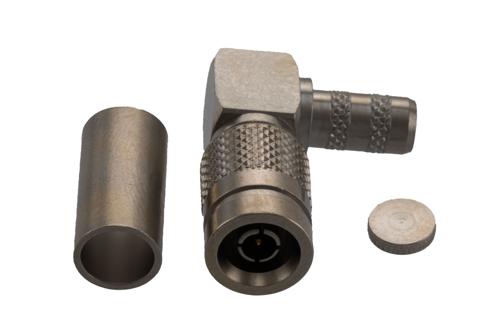

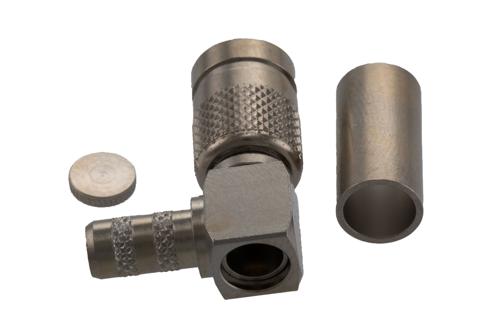

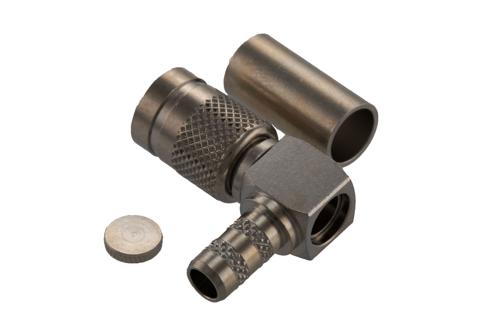

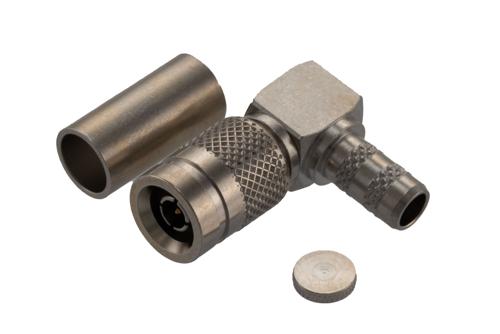

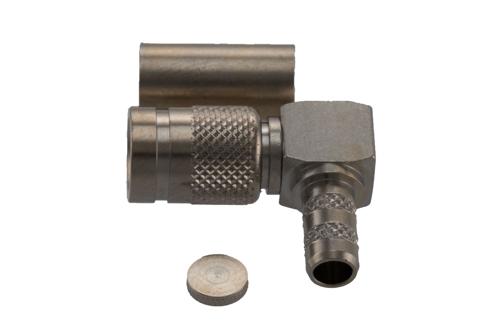

PE51767 1.0/2.3 maleright angle coaxial connector has an interface type of 1.0/2.3 male which is compatible with LMR-195-FR, RG303, RG58, RG141, PE-C195, PE-P195, LMR-195, RG142, RG55 and RG223 cables and has an impedance of 50 Ohms. Pasternack’s 1.0/2.3 male connector uses crimp as an attachment method. Our male 1.0/2.3 right anglecoaxial connector provides a maximum frequency of 2 GHz. This 1.0/2.3 male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack right angle1.0/2.3 male coaxial connector has a teflon dielectric type and a VSWR of 1.2:1. Pasternack’s 1.0/2.3 coaxial connector has a brass body with copper-tin-zinc alloy plating. Our PE51767 1.0/2.3 right angle connector uses brass inner and outer contacts. The Pasternack RF connector has a maximum inner and outer conductor resistance of 10 mOhms and 3 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE51767 1.0/2.3 connector operates at a temperature range of -55 to 125 deg C. This male 1.0/2.3 coaxial RF connector has a maximum insertion loss of 0.141 dB. This right angle 1.0/2.3 connector has a gold over nickel over copper inner contact plating and a copper-tin-zinc alloy outer contact plating. This coaxial RF connector comes with a minimum insulation resistance of 200 MOhms. Our right angle 1.0/2.3 male connector has a length of 0.85 inches, a width of 0.3 inches, and a weight of 0.01 lbs.
This Pasternack right anglemale 1.0/2.3 connector will ship the same business day as purchased. Our 1.0/2.3 right anglemale connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
