1.0/2.3 Plug Straight Connectors

Check out our new RF calculators & conversion tools...

1.0/2.3 Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

Product ID: PE45166

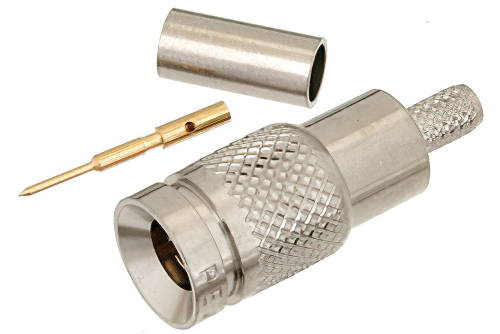

1.0/2.3 Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

Image Views:  1.0/2.3 Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS high resolution
Zoom


Click for:PE45166 Datasheet
Available Quantity: 1,669
Pricing Table
QUANTITYPRICE
1-24$11.58
25-49$10.77
50-99$9.96
100-249$9.26
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series1.0/2.3
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency4 GHz


1.0/2.3 Plug Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

PE45166 1.0/2.3 plug coaxial connector has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. Pasternack 1.0/2.3 plug connector uses shield/contact crimp/solder as an attachment method. Our plug 1.0/2.3 coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack 1.0/2.3 plug coaxial connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack 1.0/2.3 coaxial connector has a brass body with nickel plating. Our PE45166 1.0/2.3 connector uses brass contact. This 1.0/2.3 plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug 1.0/2.3 connector will ship the same day as purchased. Our 1.0/2.3 plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.0/2.3 connector cable assemblies that will ship the same day as well.
