Standard Polarity SMA to 1.0/2.3 Standard Polarity Adapters

Check out our new RF calculators & conversion tools...

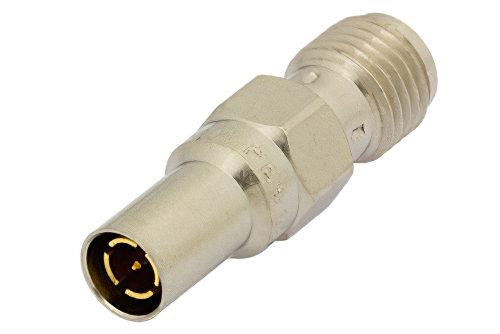

SMA Female to 1.0/2.3 Plug Adapter

Product ID: PE9691
SMA Female to 1.0/2.3 Plug Adapter

Image Views:  SMA Female to 1.0/2.3 Plug Adapter high resolution
Zoom


Click for:PE9691 Datasheet
Click for:PE9691 RoHS Cert
Click for:PE9691 REACH Cert
Available Quantity: 306
Pricing Table
QUANTITYPRICE
1-24$73.97
25-49$68.79
50-99$63.61
100-249$59.18
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 21.0/2.3
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMA Female to 1.0/2.3 Plug Adapter

SMA adapter PE9691 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to 1.0/2.3 adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications.

SMA female to 1.0/2.3 plug adapter is one of the many RF components that ship same day as they are ordered. PE9691 female SMA to plug 1.0/2.3 adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to plug 1.0/2.3 adapter PE9691 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to 1.0/2.3 radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
