1.0/2.3 Plug Straight Connectors

Check out our new RF calculators & conversion tools...

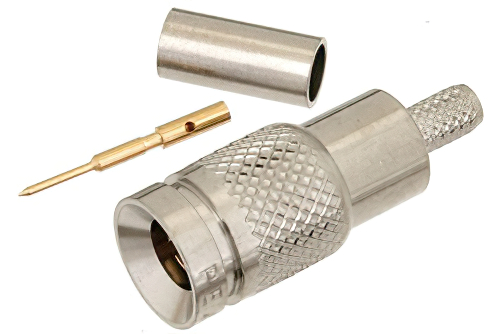

1.0/2.3 Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

Product ID: PE44244
1.0/2.3 Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch


Image Views:  1.0/2.3 Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch high resolution
Zoomalternate image
View 2


Click for:PE44244 Datasheet
Click for:PE44244 RoHS Cert
Click for:PE44244 REACH Cert
Available Quantity: 672
Pricing Table
QUANTITYPRICE
1-24$12.61
25-49$11.73
50-99$10.84
100-249$10.09
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series1.0/2.3
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency4 GHz


1.0/2.3 Plug Connector Crimp/Solder Attachment For RG174, RG316, RG188

PE44244 1.0/2.3 plug coaxial connector has an interface type of RG174, RG316, RG188 and a 50 Ohm impedance. Pasternack 1.0/2.3 plug connector uses shield/contact crimp/solder as an attachment method. Our plug 1.0/2.3 coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack 1.0/2.3 plug coaxial connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack 1.0/2.3 coaxial connector has a brass body with nickel plating. Our PE44244 1.0/2.3 connector uses brass contact. This 1.0/2.3 plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug 1.0/2.3 connector will ship the same day as purchased. Our 1.0/2.3 plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.0/2.3 connector cable assemblies that will ship the same day as well.
