1.85mm Male to 1.85mm Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

1.85mm Male to 1.85mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS

Product ID: PE3TC1000

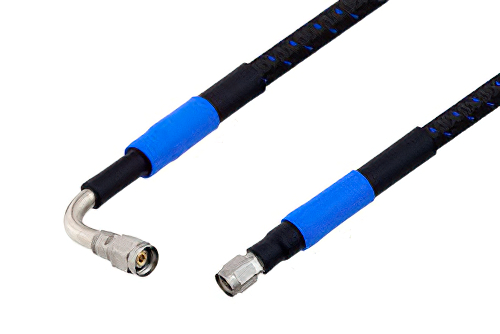

1.85mm Male to 1.85mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS

Image Views:  1.85mm Male to 1.85mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS high resolution
Zoom


Click for:PE3TC1000 Datasheet
Click for:PE3TC1000 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 11.85mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 21.85mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-VNA-HF
RF Cable TypePE-VNA-HF
RF Cable Impedance50


1.85mm Male to 1.85mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS

PE3TC1000 is a 1.85mm male to 1.85mm male right angle cable using PE-VNA-HF coax. This Pasternack 1.85mm male to 1.85mm male right angle cable assembly uses a 50 Ohm 1.85mm for connector 1 and a 50 Ohm 1.85mm for connector 2. 1.85mm to 1.85mm right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male 1.85mm to male 1.85mm right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3TC1000 1.85mm male to 1.85mm male right angle cable assembly is constructed with PE-VNA-HF coax and the maximum VSWR is 1.4:1.

WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
