10-32 Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

10-32 Male to BNC Male Cable Using RG174 Coax, LF Solder, RoHS

Product ID: PE3C3275LF

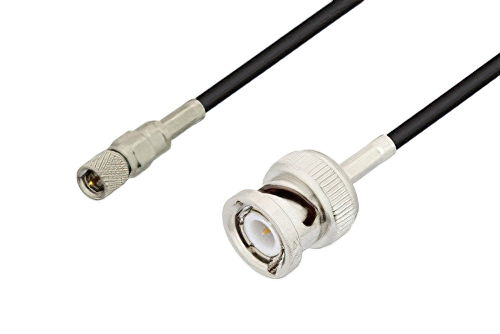

10-32 Male to BNC Male Cable Using RG174 Coax, LF Solder, RoHS

Image Views:  10-32 Male to BNC Male Cable Using RG174 Coax, LF Solder, RoHS high resolution
Zoom


Click for:PE3C3275LF Datasheet
Click for:PE3C3275LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 110-32
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


10-32 Male to BNC Male Cable Using RG174 Coax, LF Solder, RoHS

PE3C3275LF is a 10-32 male to BNC male cable using RG174 coax. This Pasternack 10-32 male to BNC male cable assembly uses a 50 Ohm 10-32 for connector 1 and a 50 Ohm BNC for connector 2.

Our male 10-32 to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3275LF 10-32 male to BNC male cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
