10-32 Male to BNC Male Cable Using RG316 Coax

Product ID: PE36542
10-32 Male to BNC Male Cable Using RG316 Coax

Image Views:  10-32 Male to BNC Male Cable Using RG316 Coax high resolution
Zoom


Click for:PE36542 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C3424
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 110-32
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50

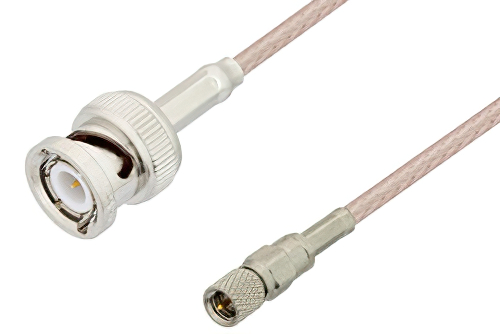

10-32 Male to BNC Male Cable Using RG316 Coax

PE36542 is a 10-32 male to BNC male cable using RG316 coax. This Pasternack 10-32 male to BNC male cable assembly uses a 50 Ohm 10-32 for connector 1 and a 50 Ohm BNC for connector 2.

Our male 10-32 to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE36542 10-32 male to BNC male cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
