10 MHz to 2.5 GHz SMA Bias Tee Rated to 2500 mA and 100 Volts DC

Product ID: PE1611
10 MHz to 2.5 GHz SMA Bias Tee Rated to 2500 mA and 100 Volts DC

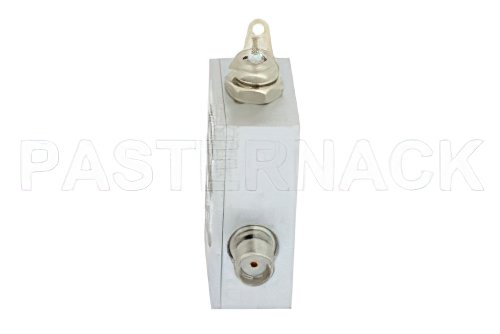

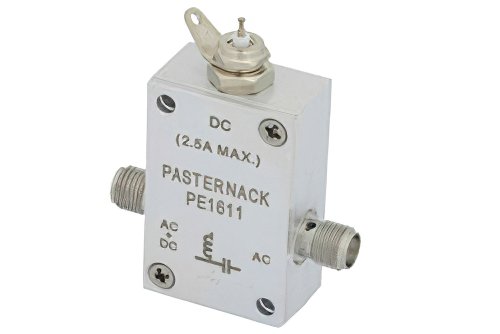

Image Views:  10 MHz to 2.5 GHz SMA Bias Tee Rated to 2500 mA and 100 Volts DC high resolution
Zoomalternate image
View 2


Click for:PE1611 Datasheet
Click for:PE1611 RoHS Cert
Click for:PE1611 REACH Cert
Available Quantity: 359
Pricing Table
QUANTITYPRICE
1-9$293.98
10-24$279.28
25-49$264.58
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
RF Port Connector SeriesSMA
DC Port Connector SeriesSolder Pin
Minimum Frequency10 MHz
Maximum Frequency6 GHz
RF Port Maximum VSWR1.5:1
Maximum Voltage100 Volts
Maximum DC Current2,500 mA


10 MHz to 6 GHz SMA Bias Tee Rated to 2500 mA and 100 Volts DC

PE1611 bias tee (also called bias T) has an SMA connector RF port that is female gender. This Pasternack female SMA bias tee design is rated for a minimum frequency of 10 MHz and a maximum frequency of 6 GHz. Our RF coaxial bias tee has a solder pin DC port connector with a female gender.

This SMA bias tee / T is rated for a max. DC voltage of 100 Volts and a max. current of 2,500 mA. The PE1611 bias T with SMA connector series for RF port is designed with a maximum VSWR of 1.5:1 and a RF to bias isolation typical of 30 dB. Pasternack's radio frequency bias tee is one of over 40,000 RF, microwave and millimeter wave components supplied by us. Our coaxial SMA bias T can be purchased and will be shipped worldwide the same-day as with other in-stock Pasternack RF parts.
