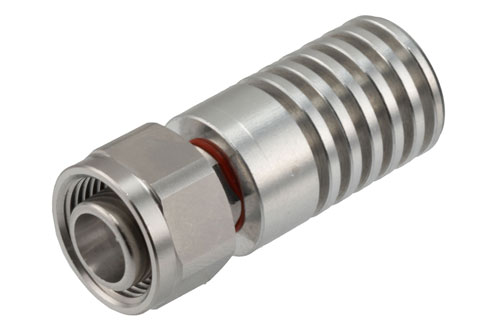

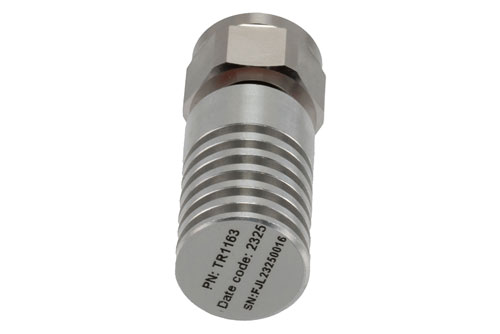

Pasternack’s PE6TR1163 RF load termination (also known as a dummy load) has a 2.2-5 male connector. This Pasternack 2.2-5 male load/termination is rated for a maximum frequency of 6 GHz. Our 2.2-5 male termination load is a RF load termination with a 50 Ohm impedance. The max input power rating (CW) of this RF termination is 10 Watts. Make your online purchase right now to take advantage of our same-day shipping.
This 2.2-5 terminator is manufactured with a brass housing body. Pasternack's 50 Ohm 2.2-5 coaxial termination has a maximum input power of 10 Watts and a maximum VSWR of 1.25:1. This connectorized RF terminator is commonly used to terminate devices such as couplers, circulators, hybrids, and combiners. Our 2.2-5 male RF termination has a brass connector built with copper-tin-zinc alloy plating. Additional dimensions and specifications for this RF load termination are on our downloadable PDF datasheet above.
Pasternack's PE6TR1163 terminator has a 2.2-5 connector and is designed to withstand temperatures between -40 to +75 deg C. This RF load termination has a 10 Watts maximum input power and 100 Watts peak power. Our RF load termination is an indispensable component in many RF, microwave and millimeter wave systems where signal reflection from unused ports can potentially damage the device or reduce signal integrity. This 10 Watts RF termination has a heatsink body that is designed to provide adequate heat dissipation within its full frequency of operation. Our radio frequency termination is suitable for 5G cellular bands, SatCom, radar systems, test and measurement and commercial and military communication applications. Our RF terminator has beryllium copper inner conductor material with silver plating.
Pasternack is where to buy a 6 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. Our 10 watt 2.2-5 male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 2.2-5 male 10 watt termination load will ship worldwide the same day as purchased.
