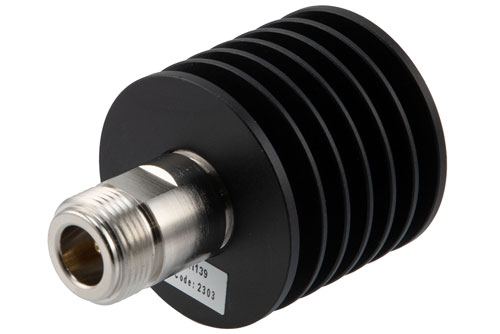

Pasternack's PE6TR1139 RF load termination (also known as a dummy load) has a N female connector. This Pasternack 10 watt N female load / termination is rated for a maximum frequency of 12.4 GHz. Our N female termination load is a RF load termination with a 50 Ohm impedance. The max input power rating (CW) of this RF termination is 10 Watts.

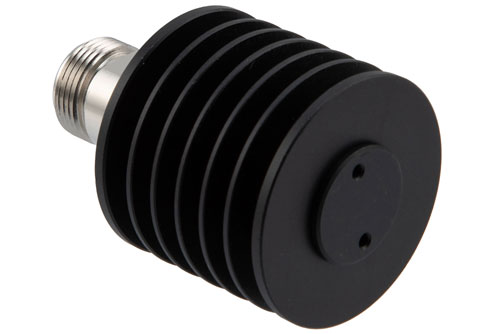

This N coax terminator is manufactured with a black anodized aluminum housing body. Pasternack's 50 Ohm N coaxial termination has a maximum input power of 10 Watts and a maximum VSWR of 1.35:1. Additional N female RF load specs for this component can be found on its radio frequency termination load PDF specification datasheet above.
Pasternack's PE6TR1139 has a N connector and is designed to withstand temperatures between -55 to +85 deg C. This RF load termination has a 10 Watts and a maximum input power and 1,000 Watts peak power. Our coax termination is suitable for WIFI 6E, 5G cellular bands, SatCom, radar systems, test and measurement, commercial and military communication applications.
Pasternack is where to buy a 12.4 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. Our 10 watt N female load termination is one of over 40,000 RF, microwave, and millimeter wave components in-stock at Pasternack. Our N female 10 watt termination load will ship worldwide the same day as purchased.
