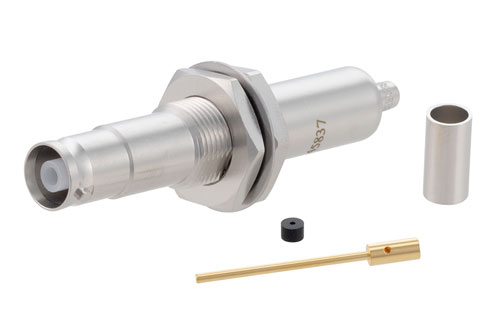

PE45837 10KV female bulkhead coaxial connector has an interface type of 10KV female RG58. Our high quality PE45837 connector is designed for high voltage applications and is rated to 10,000 Vrms. Pasternack's 10KV female bulkhead connector uses crimp/solder as an attachment method.
The Pasternack 10KV female bulkhead coaxial connector has a PE (HD) dielectric type. Pasternack's 10KV coaxial connector has a brass body with tinned copper plating. Our PE45837 10KV connector uses gold over nickel over copper-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Pasternack 10KV female connector has 10,000 Vrms voltage rating. The PE45837 10KV bulkhead connector operates at a temperature range of -55 to 85 deg C.
This Pasternack female 10KV bulkhead connector will ship the same business day as purchased. Our bulkhead 10KV female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
