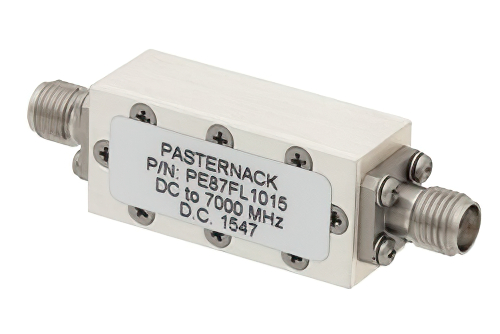

11 Section Lowpass Filter With SMA Female Connectors Operating From DC to 7 GHz

Product ID: PE87FL1015
11 Section Lowpass Filter With SMA Female Connectors Operating From DC to 7 GHz


Image Views:  11 Section Lowpass Filter With SMA Female Connectors Operating From DC to 7 GHz high resolution
Zoomalternate image

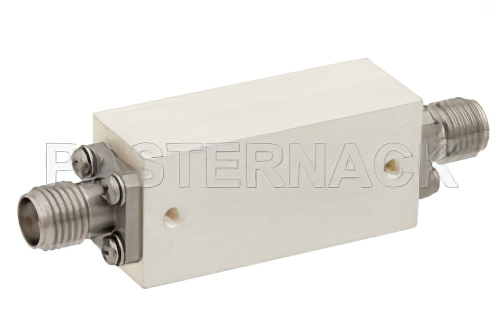

View 2


Click for:PE87FL1015 Datasheet
Click for:PE87FL1015 RoHS Cert
Click for:PE87FL1015 REACH Cert
Available Quantity: 29
Pricing Table
QUANTITYPRICE
1-1$423.68
2-4$406.73
5-9$389.79
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Min FrequencyDC
Max Frequency7 GHz
Maximum Insertion Loss1.5 dB
Impedance50 Ohm
Maximum Power6 Watts
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale


11 Section Lowpass Filter With SMA Female Connectors Operating From DC to 7 GHz

Lowpass filter PE87FL1015 from Pasternack is part of our extensive line of in-stock RF components for sale. Our lowpass filter is manufactured with SMA connectors that are female and in a 11 section design. This 11 section SMA low pass filter has a VSWR of 0 and a maximum power of 6 Watts.

Frequency range of this lowpass filter is DC to 7 GHz and the passband is 7 GHz. PE87FL1015 lowpass filter is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 11 section low pass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
