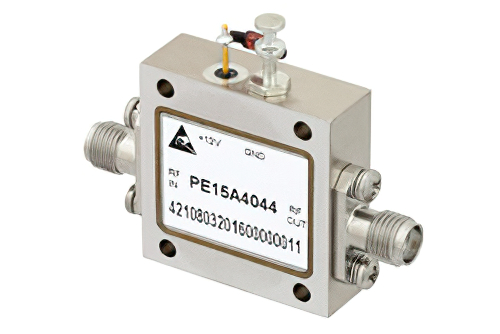

500 mW P1dB, 6 GHz to 12 GHz, Medium Power Broadband Amplifier, 16 dB Gain, 37 dBm IP3, 5 dB NF, SMA

Product ID: PE15A4044
500 mW P1dB, 6 GHz to 12 GHz, Medium Power Broadband Amplifier, 16 dB Gain, 37 dBm IP3, 5 dB NF, SMA


Image Views:  500 mW P1dB, 6 GHz to 12 GHz, Medium Power Broadband Amplifier, 16 dB Gain, 37 dBm IP3, 5 dB NF, SMA high resolution
Zoomalternate image
View 2


Click for:PE15A4044 Datasheet
Click for:PE15A4044 REACH Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-1$2,084.00
2-4$1,958.96
5-9$1,854.76
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output500 mW (27 dBm) P1dB
Frequency, Min6 GHz
Frequency, Max12 GHz
Gain, Min15 dB
Gain, Typical16 dB
3rd Intercept Point37 dB
RF Input VSWR Max2:1
RF Output VSWR Max2:1
Connector SeriesSMA


500 mW P1dB, 6 GHz to 12 GHz, Medium Power Broadband Amplifier, 16 dB Gain, 37 dBm IP3, 5 dB NF, SMA

PE15A4044 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 6 GHz and maximum frequency of 12 GHz. The minimum gain of this broad-band radio frequency amplifier is 15 dB with a typical gain of 16 dB.

Pasternack broadband amplifier PE15A4044 is rated at 500 mW (27 dBm) P1dB, 2:1 input VSWR maximum and 2:1 output VSWR max. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
