600 mW P1dB, 10 MHz to 15 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 4.5 dB NF, SMA

Product ID: PE15A3036

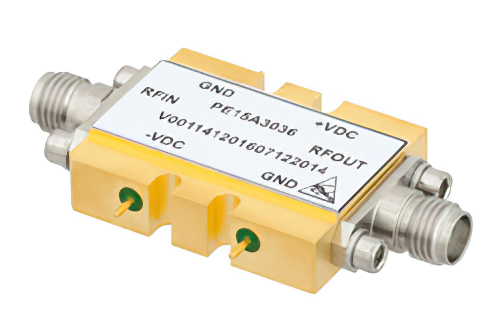

600 mW P1dB, 10 MHz to 15 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 4.5 dB NF, SMA


Image Views:  600 mW P1dB, 10 MHz to 15 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 4.5 dB NF, SMA high resolution
Zoomalternate image

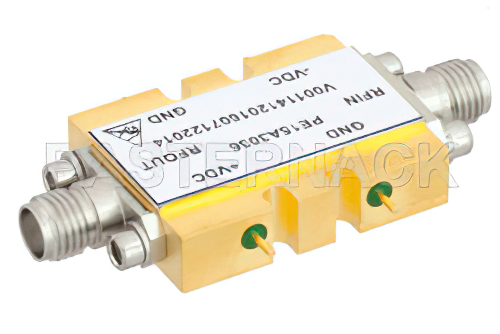

View 2


Click for:PE15A3036 Datasheet
Click for:PE15A3036 RoHS Cert
Available Quantity: 3
Pricing Table
QUANTITYPRICE
1-1$6,393.93
2-4$6,138.17
5-9$5,882.42
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output800 mW (29 dBm) Psat
Frequency, Min10 MHz
Frequency, Max15 GHz
Gain, Typical12 dB
3rd Intercept Point36 dB
Connector SeriesSMA


600 mW P1dB, 10 MHz to 15 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 4.5 dB NF, SMA

PE15A3036 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 10 MHz and maximum frequency of 15 GHz. The typical gain of this broad-band radio frequency amplifier is 12 dB.

Pasternack broadband amplifier PE15A3036 is rated at 800 mW (29 dBm) Psat. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
