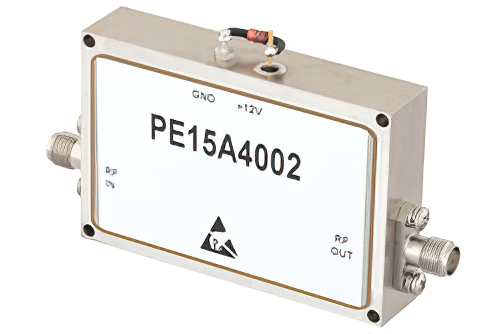

1 Watt P1dB, 12 GHz to 18 GHz, Medium Power Broadband Amplifier, 33 dB Gain, 39 dBm IP3, 6 dB NF, SMA

Name: 1 Watt P1dB, 12 GHz to 18 GHz, Medium Power Broadband Amplifier, 33 dB Gain, 39 dBm IP3, 6 dB NF, SMA
Brand: Pasternack
SKU: PE15A4002
Availability: InStock

Product ID: PE15A4002

Pricing

Quantity	Price
1-4	$4,100.00

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 11

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output	1 Watt (30 dBm) P1dB
Frequency, Min	12 GHz
Frequency, Max	18 GHz
Gain, Min	31 dB
Gain, Typical	33 dB
Gain Flatness	2 dB
Noise Figure, Max	6.5 dB
3rd Intercept Point	39 dB
RF Input VSWR Max	2.5:1
RF Output VSWR Max	2.5:1
Connector Series	SMA

Description

1 Watt P1dB, 12 GHz to 18 GHz, Medium Power Broadband Amplifier, 33 dB Gain, 39 dBm IP3, 6 dB NF, SMA

PE15A4002 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 12 GHz and maximum frequency of 18 GHz. The minimum gain of this broad-band radio frequency amplifier is 31 dB with a typical gain of 33 dB.

Pasternack broadband amplifier PE15A4002 is rated at 1 Watt (30 dBm) P1dB, 2.5:1 input VSWR maximum and 2.5:1 output VSWR max. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
