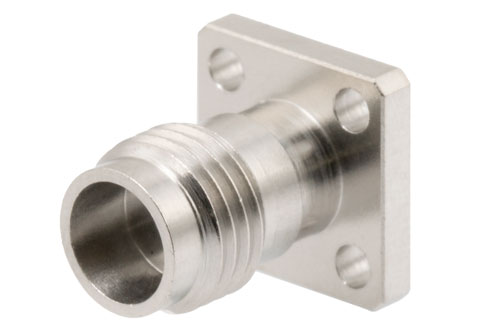

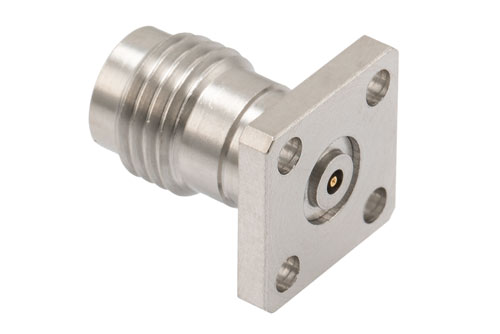

1.85mm Female Field Replaceable Connector 4 Hole Flange Mount with EMI gasket, accepts 0.23mm (.009inch) pin

Name: 1.85mm Female Field Replaceable Connector 4 Hole Flange Mount with EMI gasket, accepts 0.23mm (.009inch) pin
Brand: Pasternack
SKU: PE45715
Availability: LimitedAvailability

Product ID: PE45715

Pricing

Quantity	Price
1-24	$40.19
25-49	$38.18
50-99	$36.17
100-249	$34.56
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 6

Same-Day Shipping!

Order in the next hours!

Product discontinued when current inventory is depleted.

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series	1.85mm
Connector Gender	Female
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Field Replaceable
Mount Method	4 Hole Flange
Minimum Frequency	DC
Maximum Frequency	67 GHz
Interface Type 1	with EMI gasket
Interface Type 2	accepts 0.23mm (.009inch) pin

Description

1.85mm Female Field Replaceable Connector 4 Hole Flange Mount with EMI gasket, accepts 0.23mm (.009inch) pin

PE45715 1.85mm female 4 hole flange connector has an interface type of 1.85mm female with EMI gasket, accepts 0.23mm (.009inch) pin and a 50 Ohm impedance. Pasternack 1.85mm female 4 hole flange connector uses shield/contact as an attachment method. Our female 1.85mm connector provides a minimum frequency of DC and a maximum frequency of 67 GHz.

The Pasternack 1.85mm female 4 hole flange connector has a PEI dielectric type and a VSWR of 1.25. The Pasternack 1.85mm connector has a passivated stainless steel body. Our PE45715 1.85mm connector uses beryllium copper contact. This 1.85mm female 4 hole flange RF connector is RoHS and REACH compliant.

This Pasternack female 1.85mm 4 hole flange connector will ship the same day as purchased. Our 4 hole flange 1.85mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.85mm connector cable assemblies that will ship the same day as well.
