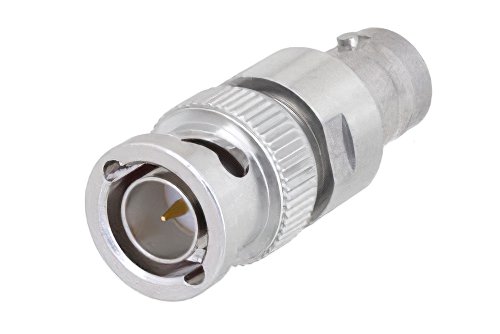

2 Watt Feed-Thru Load Up to 1,000 MHz with 75 Ohm BNC Male to Female Tri-Metal Plated Brass
Product ID:
PE6TR001
Pricing
| Quantity | Price |
| 1-24 | $51.99 |
| 25-49 | $49.39 |
| 50-99 | $46.79 |
| 100-249 | $44.71 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 176
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Termination Type | Feed-Thru Load |
| Connector Series | BNC |
| Connector Gender | Male |
| Minimum Frequency | DC |
| Maximum Frequency | 1 GHz |
| Impedance | 75 Ohm |
| Maximum VSWR | 1.3:1 |
| Maximum Power | 2 Watt |
Description
2 Watt Feed-Thru Load Up to 1,000 MHz with 75 Ohm BNC Male to Female Tri-Metal Plated Brass
PE6TR001 2 Watts RF load (also known as termination or dummy load) has a BNC connector that is male. This Pasternack 2 watts BNC male load / termination is rated for a maximum frequency of 1 GHz. Our BNC male termination load is a feed-thru load termination with a 75 Ohm impedance.
This BNC load / coax terminator is manufactured with no chain and brass body. Pasternack 75 Ohm BNC coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.3:1. PE6TR001 2 watts BNC male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our BNC male 2 watts termination load will ship worldwide the same day as purchased.
