Standard TNC 2 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

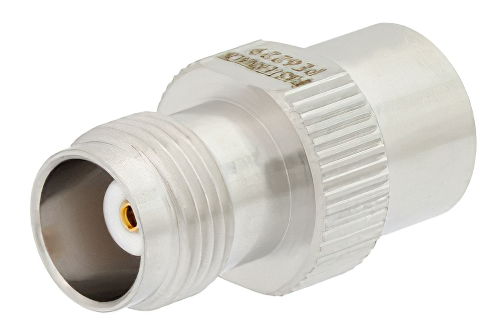

2 Watt RF Load Up to 6 GHz With TNC Female Input Tri-Metal Plated Brass

Product ID: PE6229
2 Watt RF Load Up to 6 GHz With TNC Female Input Tri-Metal Plated Brass

Image Views:  2 Watt RF Load Up to 6 GHz With TNC Female Input Tri-Metal Plated Brass high resolution
Zoom


Click for:PE6229 Datasheet
Click for:PE6229 RoHS Cert
Click for:PE6229 REACH Cert
Available Quantity: 291
Pricing Table
QUANTITYPRICE
1-24$31.00
25-49$29.45
50-99$27.90
100-249$26.66
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesTNC
Connector GenderFemale
Minimum FrequencyDC
Maximum Frequency6 GHz
Impedance50 Ohm
Maximum VSWR1.25:1
Maximum Power2 Watt


2 Watt RF Load Up To 6 GHz With TNC Female Input Tri-Metal Plated Brass

PE6229 2 Watts RF load (also known as termination or dummy load) has a TNC connector that is female. This Pasternack 2 watts TNC female load / termination is rated for a maximum frequency of 6 GHz. Our TNC female termination load is a rf load termination with a 50 Ohm impedance.

This TNC load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm TNC coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. PE6229 2 watts TNC female load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our TNC female 2 watts termination load will ship worldwide the same day as purchased.
