Standard TNC 2 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

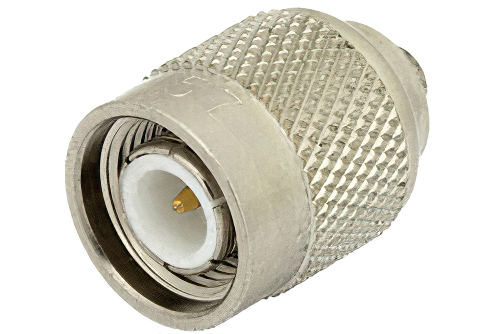

50 Ohm 2 Watts Nickel Plated Brass TNC Male RF Load Up To 2 GHz

Product ID: PE6157
50 Ohm 2 Watts Nickel Plated Brass TNC Male RF Load Up To 2 GHz


Image Views:  50 Ohm 2 Watts Nickel Plated Brass TNC Male RF Load Up To 2 GHz high resolution
Zoomalternate image
View 2


Click for:PE6157 Datasheet
Click for:PE6157 RoHS Cert
Click for:PE6157 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE6172

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesTNC
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency2 GHz
Impedance50 Ohm
Maximum VSWR1.15:1
Maximum Power2 Watt


50 Ohm 2 Watts Nickel Plated Brass TNC Male RF Load Up To 2 GHz

PE6157 2 Watts RF load (also known as termination or dummy load) has a TNC connector that is male. This Pasternack 2 watts TNC male load / termination is rated for a maximum frequency of 2 GHz. Our TNC male termination load is a rf load termination with a 50 Ohm impedance.

This TNC load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm TNC coaxial termination / load has an average maximum VSWR of 1.15:1. PE6157 2 watts TNC male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our TNC male 2 watts termination load will ship worldwide the same day as purchased.
