Standard TNC 2 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

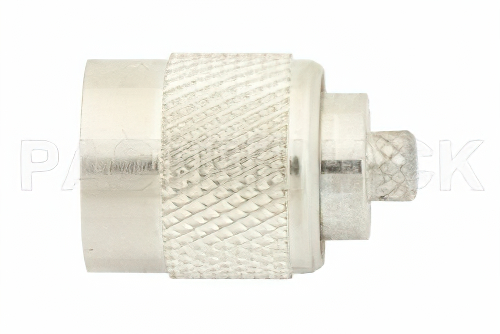

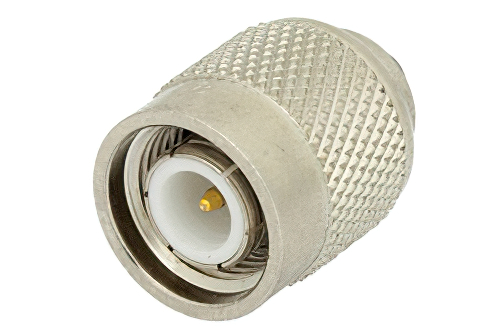

2 Watt RF Load Up to 4 GHz With TNC Male Input Nickel Plated Brass

Product ID: PE6158
2 Watt RF Load Up to 4 GHz With TNC Male Input Nickel Plated Brass


Image Views:  2 Watt RF Load Up to 4 GHz With TNC Male Input Nickel Plated Brass high resolution
Zoomalternate image
View 2


Click for:PE6158 Datasheet
Click for:PE6158 RoHS Cert
Click for:PE6158 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE6172

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesTNC
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency4 GHz
Impedance50 Ohm
Maximum VSWR1.15:1
Maximum Power2 Watt


50 Ohm 2 Watts Precision Nickel Plated Brass TNC Male RF Load Up To 4 GHz

PE6158 2 Watts RF load (also known as termination or dummy load) has a TNC connector that is male. This Pasternack 2 watts TNC male load / termination is rated for a maximum frequency of 4 GHz. Our TNC male termination load is a rf load termination with a 50 Ohm impedance.

This precision TNC load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm TNC coaxial termination / load has an average maximum VSWR of 1.15:1. PE6158 2 watts TNC male precision load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our TNC male 2 watts termination load will ship worldwide the same day as purchased.
