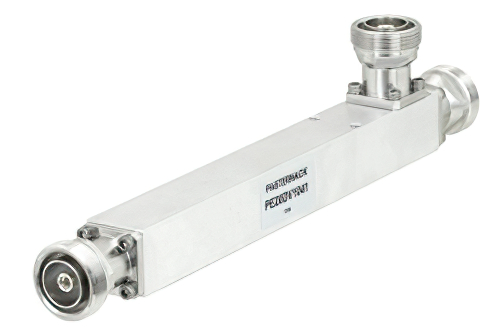

Low PIM 2 Way 7/16 DIN Power Divider from 376 MHz to 2.5 GHz Rated at 300 Watts

PE20DV1041 2 way 7/16 DIN power divider (also known as a 7/16 DIN coaxial power splitter) is rated for a minimum frequency of 376 MHz and a maximum frequency of 2.5 GHz. This Pasternack 2 port 7/16 DIN power divider / coaxial splitter has a 50 Ohm impedance and a maxium input power of 300 Watts. Our 7/16 DIN coaxial RF splitter / divider has a female 7/16 DIN input and 2 female 7/16 DIN output ports.

This 2 way 7/16 DIN RF power divider from Pasternack is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this 7/16 DIN reactive splitter / divider is 1.25:1 and the minimum isolation is 0 dB. Our 2 port 7/16 DIN power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This reactive 2 way 7/16 DIN female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
