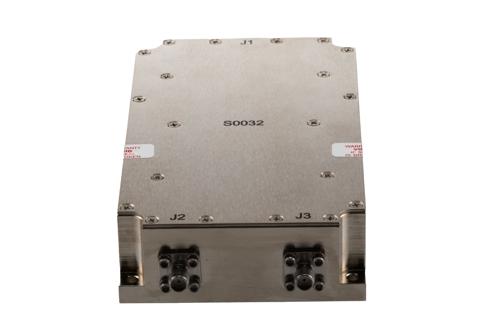

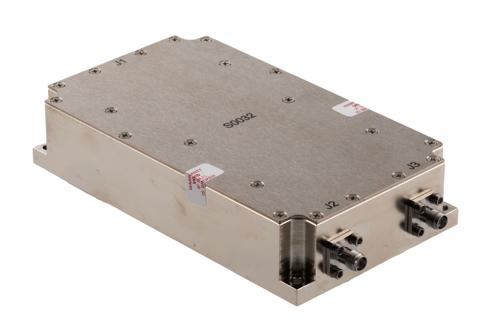

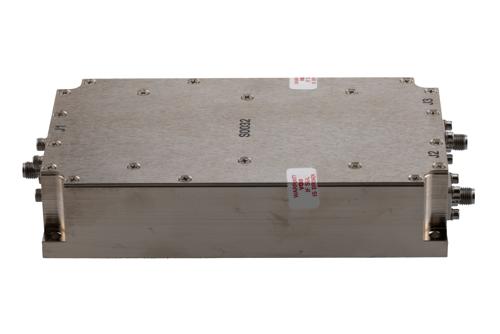

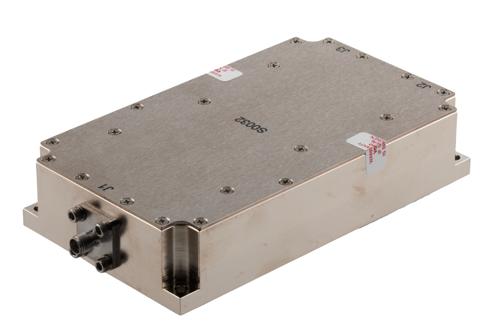

Pasternack’s PE20S0032 is a passive 2-way broadband RF combiner that operates at a minimum frequency of 700 MHz and a maximum frequency of 6 GHz. Our high-power Coaxial Connectorized combiner has a maximum input-output VSWR of 1.35:1 along with a maximum power handling capacity of 125 Watts. This 2-way RF power combiner is stocked to be readily available for same business day shipment.
Our Coaxial combiner has an SMA Female input and SMA Female output connectors. This PE20S0032 2-way RF power combiner from Pasternack is suitable for Communications Systems, Power Combining, PCS, GSM, LTE, Cellular, Amplifier Systems, Amplifier Power Combining, Wireless Infrastructures and Defense Applications applications. Our Reactive broadband RF combiner has a length of 5.2 inches, a width of 3 inches, and a weight of 1.25 lbs. Additional radio frequency combiner specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.
The high-power 2-way broadband RF combiner has a minimum isolation of 8 dB and a maximum insertion loss of 0.9 dB. Our Female Coaxial radio frequency combiner has a typical phase balance of 5 degrees and a typical amplitude balance of 0.3 dB. This PE20S0032 broadband radio frequency power combiner from Pasternack has an impedance of 50 Ohms. Our Coaxial Connectorized combiner can operate at temperatures ranging from -55° to 85° degrees C.
This Pasternack 2-way RF combiner will ship the same business day as purchased. Our high-power Coaxial combiner is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF power combiner as per your requirements.
