2.2-5 Female Low PIM Connector Solder Attachment for TFT-5G-402

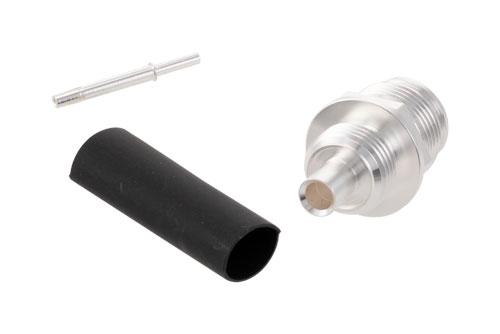

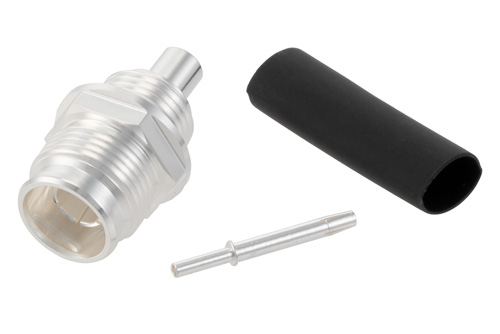

TC-402-225F-LP 2.2-5 female bulkhead coaxial connector has an interface type of TFT-402 and a 50 Ohm impedance. Pasternack 2.2-5 female bulkhead connector uses shield/contact solder/solder as an attachment method. Our female 2.2-5 coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack 2.2-5 female bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.3. The Pasternack 2.2-5 coaxial connector has a brass body with silver plating. Our TC-402-225F-LP 2.2-5 connector uses beryllium copper contact and a silver plating material. This 2.2-5 female bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack female 2.2-5 bulkhead connector will ship the same day as purchased. Our bulkhead 2.2-5 female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.2-5 connector cable assemblies that will ship the same day as well.
