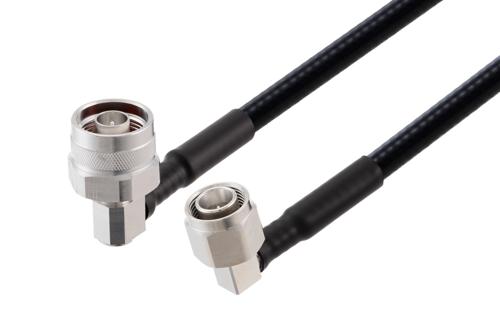

Radio frequency assembly 2.2-5 male right angle to N male right angle low PIM cable using 1/4 inch superflexible coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The 2.2-5 male right angle to N male right angle low PIM cable using 1/4 inch superflexible coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom 2.2-5 to type N cable assembly orders will ship the same business day as well.
Pasternack RF coax low PIM cable assembly is built with a right angle 2.2-5 cable connection on one end and a right angle type N cable connection on the other. Our low PIM right angle 2.2-5 to right angle type N cable assembly has a male gender on end 1 and a male on end 2. PE3W15844 can also be known as a low PIM right angle 2.2-5 plug to right angle type N plug cable assembly and will be shipped the same day as it is purchased. This corrugated RF cable assembly with a 0.5-inch diameter has copper clad aluminum as the cable's inner conducting material and PE (F) dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W15844 RF cable has a PE jacket of 0.303-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The corrugated RF cable has a between series connection. This cable assembly has a typical propagation velocity of 82% and a minimum RF shielding of 120 dB. Our right angle 2.2-5 male to right angle type N male cable has a maximum VSWR of 1.4:1.
2.2-5 plug to type N plug cable assembly PE3W15844 is built with 1/4" superflexible which is a corrugated coax type. The Pasternack low passive intermodulation corrugated 2.2-5 cable assembly is manufactured with right angle 2.2-5 to right angle type N cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low PIM RF cable are available on our downloadable PDF datasheet. PE3W15844 can also be used in the other direction and will be a right angle type N male to right angle 2.2-5 male cable assembly if the opposite connectivity is required.
Low PIM 2.2-5 right angle plug to type N right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality 2.2-5 to type N cable assembly for quick shipment worldwide. Variations of 2.2-5 and type N cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal 2.2-5 to type N low PIM RF cable assembly as per your requirements.
