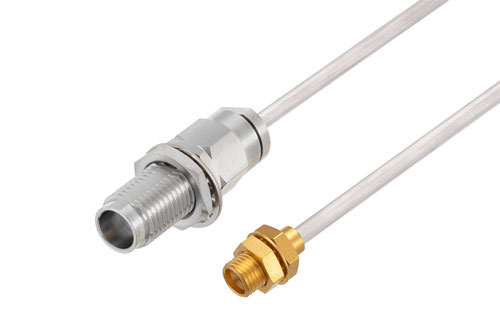

2.4mm Female Bulkhead to Limited Detent SMP Male Bulkhead Cable Using PE-SR405AL Coax

Product ID: PE3W11761

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	2.4mm
Connector 1 Gender	Female
Connector 1 Polarity	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector 1 Impedance	50 Ohm
Connector 2 Series	SMP
Connector 2 Gender	Male
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Passivated Stainless Steel
RF Cable Part Number	PE-SR405AL
RF Cable Type	PE-SR405AL
RF Cable Impedance	50 Ohm

Description

2.4mm Female Bulkhead to Limited Detent SMP Male Bulkhead Cable Using PE-SR405AL Coax

Radio frequency assembly 2.4mm female bulkhead to limited detent SMP male bulkhead cable using PE-SR405AL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The 2.4mm female bulkhead to limited detent SMP male bulkhead cable using PE-SR405AL coax, 2.4mm cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom 2.4mm to SMP cable assembly orders will ship same day as well.

Pasternack RF coax cable assembly is built with 2.4mm bulkhead cable connection on one end and SMP bulkhead cable connection on the other. Our 2.4mm to SMP cable assemblies have a female gender on end 1 and male on end 2. PE3W11761 can also be known as a 2.4mm jack to SMP plug cable assembly and will be shipped same-day as it is purchased.

2.4mm jack to SMP plug cable assembly PE3W11761 is built with PE-SR405AL which is a semi-rigid coax type. The Pasternack semi-rigid 2.4mm cable assembly is manufactured with 2.4mm to SMP cable connectors, has a 50 Ohm impedance. RF specs on this 26.5 GHz maximum frequency 2.4mm female bulkhead to SMP male bulkhead cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3W11761 can also be used in the other direction and will be SMP male bulkhead to 2.4mm female bulkhead cable assembly if the opposite connectivity is required.

2.4mm jack bulkhead to SMP plug bulkhead cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality 2.4mm to SMP cable assembly for quick shipment worldwide. Variations of 2.4mm cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this 2.4mm female bulkhead to limited detent SMP male bulkhead cable using PE-SR405AL coax.
