2.4mm Male To 2.4mm Male .095 Cables

Check out our new RF calculators & conversion tools...

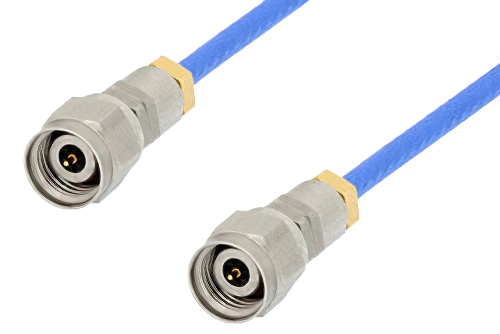

2.4mm Male to 2.4mm Male Precision Cable 30 Inch Length Using 095 Series Coax, RoHS

Product ID: PE35611-30
2.4mm Male to 2.4mm Male Precision Cable 30 Inch Length Using 095 Series Coax, RoHS

Image Views:  2.4mm Male to 2.4mm Male Precision Cable 30 Inch Length Using 095 Series Coax, RoHS high resolution
Zoom


Click for:PE35611-30 Datasheet
Click for:PE35611-30 RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE3C0728

Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 12.4mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 22.4mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-095 Series
RF Cable Type095 Series
RF Cable Impedance50


2.4mm Male to 2.4mm Male Precision Cable 30 Inch Length Using 095 Series Coax, RoHS

PE35611-30 is a 2.4mm male to 2.4mm male cable using 095 Series coax. This Pasternack 2.4mm male to 2.4mm male cable assembly uses a 50 Ohm 2.4mm for connector 1 and a 50 Ohm 2.4mm for connector 2.

Our male 2.4mm to male 2.4mm cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35611-30 2.4mm male to 2.4mm male cable assembly is constructed with 095 Series coax and the maximum VSWR is 1.4:1.
