2.4mm Male to 2.4mm Male Cable Assemblies

Check out our new RF calculators & conversion tools...

2.4mm Male to 2.4mm Male Cable Using RG405 Coax

Product ID: PE35639

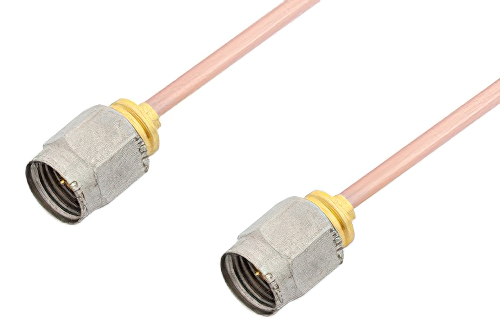

2.4mm Male to 2.4mm Male Cable Using RG405 Coax

Image Views:  2.4mm Male to 2.4mm Male Cable Using RG405 Coax high resolution
Zoom


Click for:PE35639 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Cable Assemblies.
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 12.4mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 22.4mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG405/U
RF Cable TypeRG405
RF Cable Impedance50


2.4mm Male to 2.4mm Male Cable Using RG405 Coax

PE35639 is a 2.4mm male to 2.4mm male cable using RG405 coax. This Pasternack 2.4mm male to 2.4mm male cable assembly uses a 50 Ohm 2.4mm for connector 1 and a 50 Ohm 2.4mm for connector 2.

Our male 2.4mm to male 2.4mm cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE35639 2.4mm male to 2.4mm male cable assembly is constructed with RG405 coax and the maximum VSWR is 1.4:1.
