2.4mm Male to 2.4mm Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

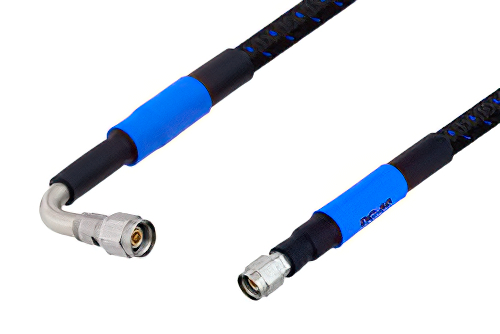

2.4mm Male to 2.4mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS

Product ID: PE3TC0700
2.4mm Male to 2.4mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS

Image Views:  2.4mm Male to 2.4mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS high resolution
Zoom


Click for:PE3TC0700 Datasheet
Click for:PE3TC0700 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 12.4mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 22.4mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-VNA-HF
RF Cable TypePE-VNA-HF
RF Cable Impedance50


2.4mm Male to 2.4mm Male Right Angle Precision Cable Using High Flex VNA Test Coax, RoHS

PE3TC0700 is a 2.4mm male to 2.4mm male right angle cable using PE-VNA-HF coax. This Pasternack 2.4mm male to 2.4mm male right angle cable assembly uses a 50 Ohm 2.4mm for connector 1 and a 50 Ohm 2.4mm for connector 2. 2.4mm to 2.4mm right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male 2.4mm to male 2.4mm right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3TC0700 2.4mm male to 2.4mm male right angle cable assembly is constructed with PE-VNA-HF coax and the maximum VSWR is 1.3:1.

WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
