2.4mm Male Straight Connectors

Check out our new RF calculators & conversion tools...

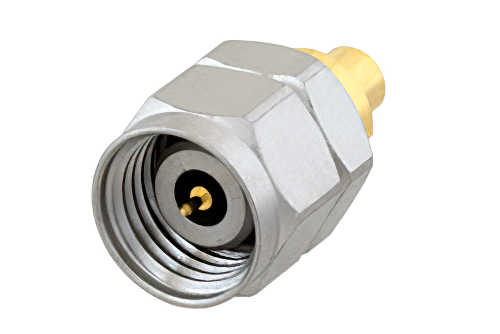

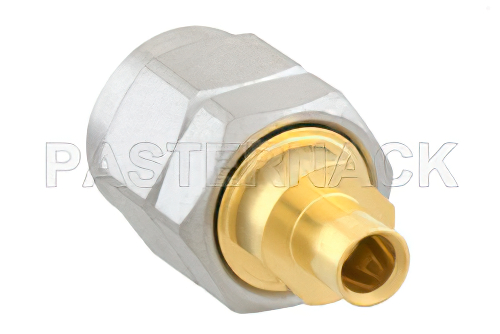

2.4mm Male Connector Solder Attachment for PE-SR405AL, RG405, PE-SR405FLJ

Product ID: PE45414
2.4mm Male Connector Solder Attachment for PE-SR405AL, RG405, PE-SR405FLJ


Image Views:  2.4mm Male Connector Solder Attachment for PE-SR405AL, RG405, PE-SR405FLJ high resolution
Zoomalternate image
View 2


Click for:PE45414 Datasheet
Click for:PE45414 RoHS Cert
Click for:PE45414 REACH Cert
Available Quantity: 277
Pricing Table
QUANTITYPRICE
1-24$81.87
25-49$77.78
50-99$73.68
100-249$70.41
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series2.4mm
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency50 GHz


2.4mm Male Connector Solder Attachment for PE-SR405AL, RG405, PE-SR405FLJ

PE45414 2.4mm male coaxial connector has an interface type of PE-SR405AL, RG405, PE-SR405FLJ and a 50 Ohm impedance. Pasternack 2.4mm male connector uses shield/contact solder as an attachment method. Our male 2.4mm coaxial connector provides a minimum frequency of DC and a maximum frequency of 50 GHz.

The Pasternack 2.4mm male coaxial connector has a pei dielectric type and a VSWR of 1.16. The Pasternack 2.4mm coaxial connector has a beryllium copper body with gold over nickel plating. Our PE45414 2.4mm connector uses beryllium copper contact. This 2.4mm male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male 2.4mm connector will ship the same day as purchased. Our 2.4mm male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.4mm connector cable assemblies that will ship the same day as well.
