2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

Product ID: PE45457

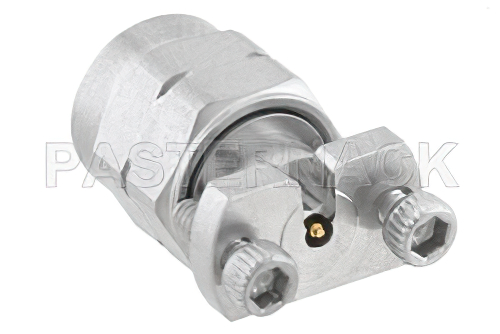

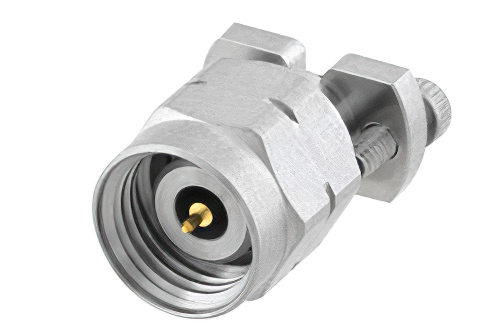

2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch


Image Views:  2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch high resolution
Zoomalternate image
View 2


Click for:PE45457 Datasheet
Click for:PE45457 RoHS Cert
Click for:PE45457 REACH Cert
Available Quantity: 82
Pricing Table
QUANTITYPRICE
1-24$45.82
25-49$43.53
50-99$41.24
100-249$39.41
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series2.4mm
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency50 GHz


2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

PE45457 2.4mm male pcb connector has an interface type of vertical launch and a 50 Ohm impedance. Pasternack 2.4mm male connector uses shield/contact clamp as an attachment method. Our male 2.4mm pcb connector provides a minimum frequency of DC and a maximum frequency of 50 GHz.

The Pasternack 2.4mm male pcb connector has a ultem1000 dielectric type and a VSWR of 1.3. The Pasternack 2.4mm pcb connector has a passivated stainless steel body. Our PE45457 2.4mm connector uses brass contact. This 2.4mm male pcb RF connector is RoHS and REACH compliant.

This Pasternack male 2.4mm connector will ship the same day as purchased. Our 2.4mm male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.4mm connector cable assemblies that will ship the same day as well.
