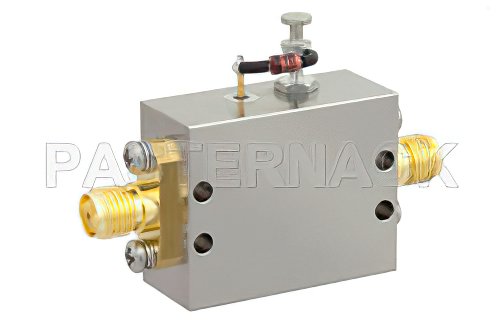

24 dBm P1dB, 500 MHz to 2.5 GHz, Medium Power Broadband Amplifier, 24 dB Gain, 3.5 dB NF, SMA

Product ID: PE15A4039
24 dBm P1dB, 500 MHz to 2.5 GHz, Medium Power Broadband Amplifier, 24 dB Gain, 3.5 dB NF, SMA


Image Views:  24 dBm P1dB, 500 MHz to 2.5 GHz, Medium Power Broadband Amplifier, 24 dB Gain, 3.5 dB NF, SMA high resolution
Zoomalternate image
View 2


Click for:PE15A4039 Datasheet
Click for:PE15A4039 RoHS Cert
Click for:PE15A4039 REACH Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-1$1,250.40
2-4$1,175.38
5-9$1,112.86
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output24 dBm P1dB
Frequency, Min500 MHz
Frequency, Max2.5 GHz
Gain, Min23 dB
Gain, Typical24 dB
Noise Figure, Max4 dB
RF Input VSWR Max2:1
RF Output VSWR Max2:1
Connector SeriesSMA


24 dBm P1dB, 500 MHz to 2.5 GHz, Medium Power Broadband Amplifier, 24 dB Gain, 3.5 dB NF, SMA

PE15A4039 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 500 MHz and maximum frequency of 2.5 GHz. The minimum gain of this broad-band radio frequency amplifier is 23 dB with a typical gain of 24 dB.

Pasternack broadband amplifier PE15A4039 is rated at 24 dBm P1dB, 2:1 input VSWR maximum and 2:1 output VSWR max. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
