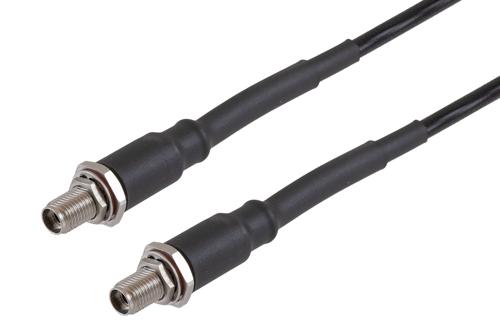

Radio frequency assembly 2.92mm female bulkhead to 2.92mm female bulkhead low loss space cable using PE-R135LL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The 2.92mm female bulkhead to 2.92mm female bulkhead low loss space cable using PE-R135LL coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom 2.92mm to 2.92mm cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss space cable assembly is built with a 2.92mm bulkhead cable connection on one end and a 2.92mm bulkhead cable connection on the other. Our low loss space 2.92mm to 2.92mm cable assembly has a female gender on end 1 and a female on end 2. PE3C100019 can also be known as a low loss space 2.92mm jack to 2.92mm jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.437-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
2.92mm low loss space cable assemblies from Pasternack are ideal for applications including vacuum environments, low earth orbit (leo), space (exploration, launches, maintenance, stations), ground systems and satellites. The minimum bend radius for this cable is 1.08 inches, allowing for a single bend without damaging the cable. Our PE3C100019 RF cable has a ETFE jacket of 0.145-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -65 to 150 degrees C. The flexible RF cable has an in-series connection. This cable assembly has a typical propagation velocity of 82% and a minimum RF shielding of 100 dB. Our bulkhead 2.92mm female to bulkhead 2.92mm female cable has a maximum VSWR of 1.4:1.
2.92mm jack to 2.92mm jack cable assembly PE3C100019 is built with PE-R135LL which is a flexible coax type. The Pasternack flexible 2.92mm cable assembly is manufactured with 2.92mm to 2.92mm cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a stainless steel body with passivated plating. Additional dimensions, specifications and CAD drawings for this low loss space RF cable are available on our downloadable PDF datasheet.
Low loss space 2.92mm jack bulkhead to 2.92mm jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality 2.92mm to 2.92mm cable assembly for quick shipment worldwide. Variations of 2.92mm cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal 2.92mm to 2.92mm low loss space RF cable assembly as per your requirements.
