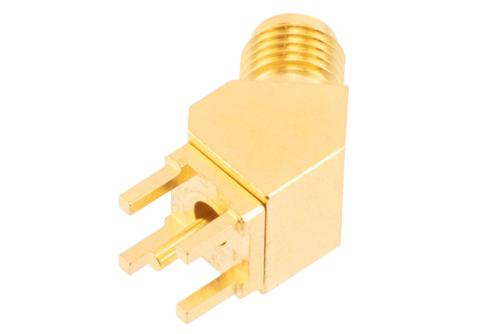

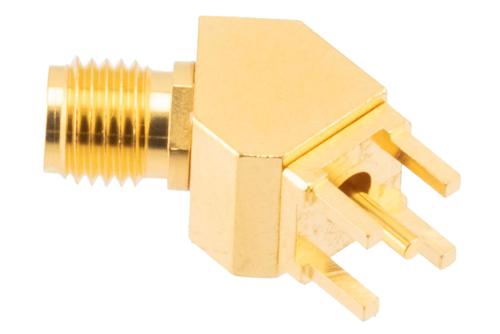

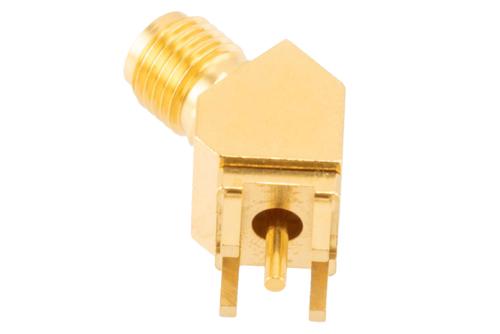

PE45997 2.92mm female 45 degree PCB RF connector has an impedance of 50 Ohm. Our female 2.92mm 45 degree connector provides a maximum frequency of 40 GHz. This 2.92mm female RF connector is stocked to be readily available for same business day shipment.
The Pasternack 45 degree 2.92mm female PCB connector has a PEI dielectric type and a VSWR of 1.2:1. Pasternack's 2.92mm connector has a brass body with gold over nickel over copper plating. Our PE45997 2.92mm 45 degree connector uses agold over nickel over copper-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. The PE45997 2.92mm PCB connector operates at a temperature range of -40 to 165 deg C. This female RF connector has a maximum insertion loss of 0.25 dB. The Pasternack 2.92mm female connector has a dielectric withstanding voltage of 750 Vrms.
This Pasternack 45 degree female 2.92mm PCB connector will ship the same business day as purchased. Our PCB 2.92mm 45 degree female connector is part of RF, microwave and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
