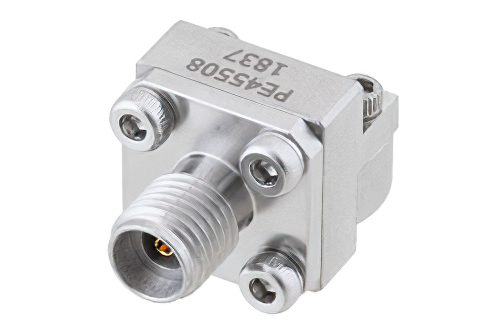

2.92mm Female Connector Clamp/Solder (Captive Contact) Attachment End Launch PCB, Removable End Launch, Low Profile

Name: 2.92mm Female Connector Clamp/Solder (Captive Contact) Attachment End Launch PCB, Removable End Launch, Low Profile
Brand: Pasternack
SKU: PE45508

Product ID: PE45508

Pricing

Quantity	Price
1-9	$208.99
10-24	$198.54
25-49	$188.09
50+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 14

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	2.92mm
Connector Gender	Female
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Clamp/Solder (Captive Contact)
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	40 GHz
Interface Type 1	End Launch

Description

2.92mm Female Connector Clamp/Solder (Captive Contact) Attachment End Launch PCB, Removable End Launch, Low Profile

PE45508 2.92mm female pcb connector has an interface type of end launch and a 50 Ohm impedance. Pasternack 2.92mm female connector uses shield/contact clamp/solder (captive contact) as an attachment method. Our female 2.92mm pcb connector provides a minimum frequency of DC and a maximum frequency of 40 GHz.

The Pasternack 2.92mm female pcb connector has a PEI dielectric type and a VSWR of 1.4. The Pasternack 2.92mm pcb connector has a passivated stainless steel body. Our PE45508 2.92mm connector uses beryllium copper contact. This 2.92mm female pcb RF connector is RoHS and REACH compliant.

This Pasternack female 2.92mm connector will ship the same day as purchased. Our 2.92mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.92mm connector cable assemblies that will ship the same day as well.
