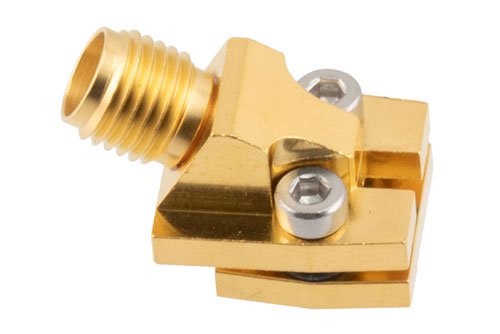

PE45920 2.92mm female 30 degree 2 hole flange PCB RF connector has an impedance of 50 Ohms. Our female 2.92mm 30 degree PCB connector provides a maximum frequency of 40 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This 2.92mm female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack 30 degree 2.92mm female 2 hole flange PCB connector has a maximum VSWR of 1.25:1. Pasternack's 2.92mm PCB connector has a beryllium copper body with gold plating. Our PE45920 2.92mm 30 degree connector uses beryllium copper inner and outer contacts.The Pasternack RF connector block has a maximum inner conductor and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from beryllium copper material has a contact life of 500 cycles or more. The PE45920 2.92mm 2 hole flange connector operates at a temperature range of -40 to 85 deg C. This female 2.92mm PCB RF connector has a maximum insertion loss of 0.252 dB. This 30 degree connector has gold inner and outer contact plating. The Pasternack 2.92mm female connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This PCB RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our 30 degree 2.92mm female connector has a length of 0.71 inches, a width of 0.43 inches, and a weight of 0.01 lbs.
This Pasternack 30 degree female 2.92mm 2 hole flange connector will ship the same business day as purchased. Our 2 hole flange 2.92mm 30 degree female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
