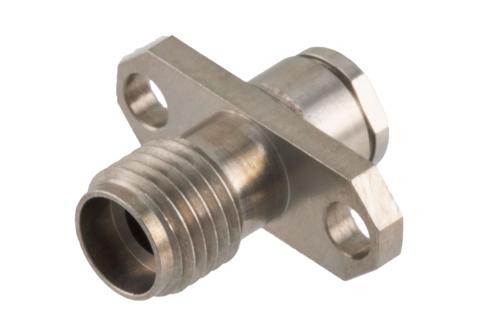

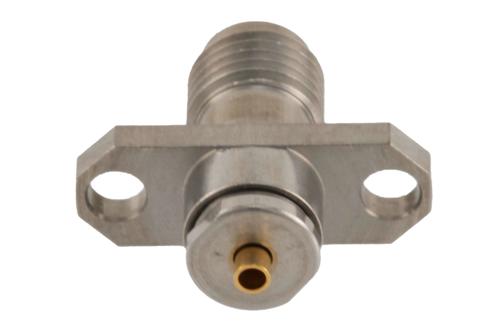

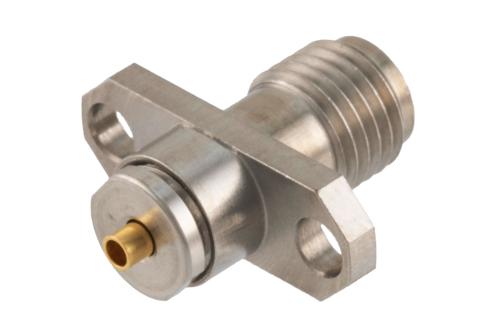

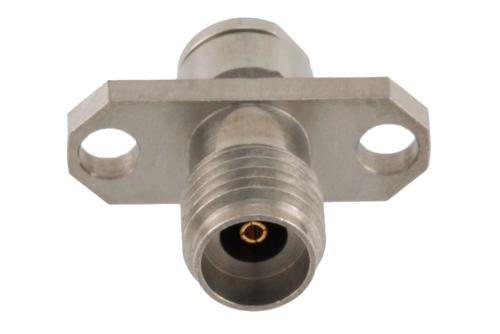

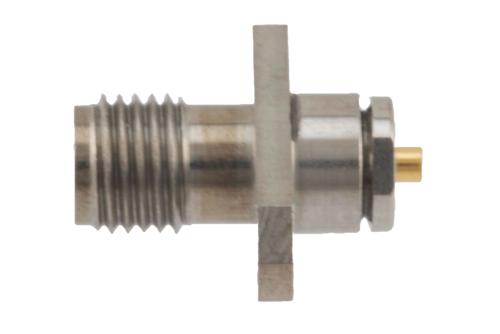

PE51274 2.92mm female 2 hole flange coaxial connector has an interface type of PE-047SR, PE-P047, PE-P047LL, PE-SR047AL, PE-SR047FL and .047 semi-rigid and a 50 Ohm impedance. Pasternack's 2.92mm female 2 hole flange connector uses clamp/solder as an attachment method. Our female 2.92mm coaxial connector provides a maximum frequency of 40 GHz. This 2.92mm female RF connector is stocked to be readily available for same business day shipment.
The Pasternack 2.92mm female 2 hole flange coaxial connector has a PPO dielectric type and a VSWR of 1.25:1. Pasternack's 2.92mm coaxial connector has a stainless steel body with passivated plating. Our PE51274 2.92mm connector uses a gold over nickel-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from stainless steel material and has a contact life of 5000 cycles or more. The PE51274 2.92mm 2 hole flange connector operates at a temperature range of -55 to 105 deg C. This threaded female coaxial RF connector has a maximum insertion loss of 0.253 dB. The Pasternack 2.92mm female connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms.
This Pasternack female 2.92mm 2 hole flange connector will ship the same business day as purchased. Our 2 hole flange 2.92mm female connector is part of RF, microwave and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
