2.92mm Female Straight Connectors

Check out our new RF calculators & conversion tools...

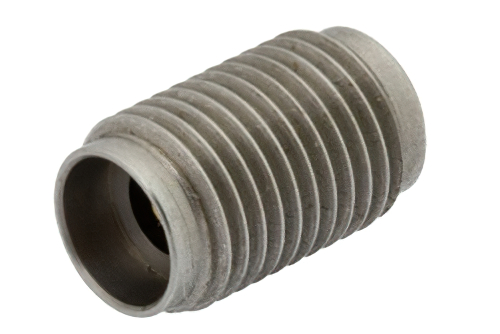

2.92mm Female Threaded Mount Field Replaceable Connector .012 inch Pin

Product ID: PE44231
2.92mm Female Threaded Mount Field Replaceable Connector .012 inch Pin


Image Views:  2.92mm Female Threaded Mount Field Replaceable Connector .012 inch Pin high resolution
Zoomalternate image
View 2


Click for:PE44231 Datasheet
Click for:PE44231 RoHS Cert
Click for:PE44231 REACH Cert
DISCONTINUED PRODUCT
Remaining Quantity Available: 137
Pricing Table
QUANTITYPRICE
1-24$97.06
25-49$90.27
50-99$83.47
100-249$77.65
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series2.92mm
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodField Replaceable
Mount MethodThreaded
Minimum FrequencyDC
Maximum Frequency40 GHz


2.92mm Female Threaded Mount Field Replaceable Connector .012 inch Pin

PE44231 2.92mm female threaded connector has an interface type of .012 inch pin and a 50 Ohm impedance. Pasternack 2.92mm female threaded connector uses shield/contact as an attachment method. Our female 2.92mm connector provides a minimum frequency of DC and a maximum frequency of 40 GHz.

The Pasternack 2.92mm female threaded connector has a ppo dielectric type and a VSWR of 1.25. The Pasternack 2.92mm connector has a passivated stainless steel body. Our PE44231 2.92mm connector uses beryllium copper contact. This 2.92mm female threaded RF connector is REACH compliant.

This Pasternack female 2.92mm threaded connector will ship the same day as purchased. Our threaded 2.92mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.92mm connector cable assemblies that will ship the same day as well.
