2.92mm Male to 2.92mm Female Test Cable Using PE-P160 Coax, RoHS

Product ID: PE361

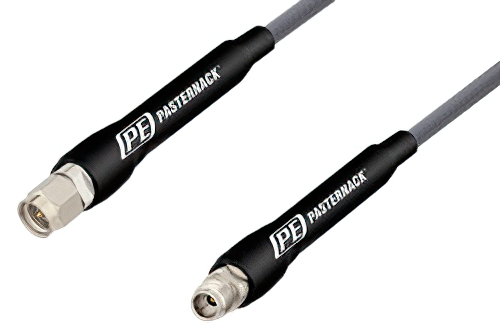

2.92mm Male to 2.92mm Female Test Cable Using PE-P160 Coax, RoHS

Image Views:  2.92mm Male to 2.92mm Female Test Cable Using PE-P160 Coax, RoHS high resolution
Zoom


Click for:PE361 Datasheet
Click for:PE361 RoHS Cert
Click for:PE361 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
36 in.48 in.100 cm.150 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 12.92mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 22.92mm
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P160
RF Cable TypePE-P160
RF Cable Impedance50


2.92mm Male to 2.92mm Female Test Cable Using PE-P160 Coax, RoHS

PE361 is a 2.92mm male to 2.92mm female cable using PE-P160 coax. This Pasternack 2.92mm male to 2.92mm female cable assembly uses a 50 Ohm 2.92mm for connector 1 and a 50 Ohm 2.92mm for connector 2.

Our male 2.92mm to female 2.92mm cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE361 2.92mm male to 2.92mm female cable assembly is constructed with PE-P160 coax and the maximum VSWR is 1.4:1.
