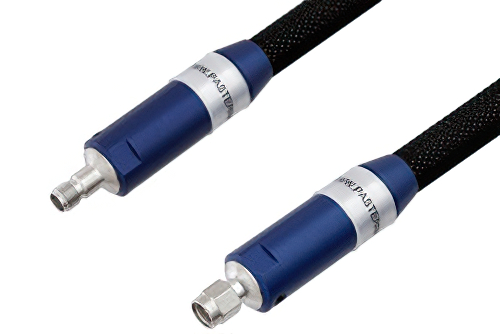

VNA Ruggedized Test Cable 2.92mm Male to 2.92mm Female 26.5GHz, RoHS

Product ID: PE3VNA2606
VNA Ruggedized Test Cable 2.92mm Male to 2.92mm Female 26.5GHz, RoHS

Image Views:  VNA Ruggedized Test Cable 2.92mm Male to 2.92mm Female 26.5GHz, RoHS high resolution
Zoom


Click for:PE3VNA2606 Datasheet
Click for:PE3VNA2606 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.48 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 12.92mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 22.92mm
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-VNA-R
RF Cable TypePE-VNA-R
RF Cable Impedance50


VNA Ruggedized Test Cable 2.92mm Male to 2.92mm Female 26.5GHz, RoHS

PE3VNA2606 is a 2.92mm male to 2.92mm female cable using PE-VNA-R coax. This Pasternack 2.92mm male to 2.92mm female cable assembly uses a 50 Ohm 2.92mm for connector 1 and a 50 Ohm 2.92mm for connector 2.

Our male 2.92mm to female 2.92mm cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3VNA2606 2.92mm male to 2.92mm female cable assembly is constructed with PE-VNA-R coax and the maximum VSWR is 1.25:1.
