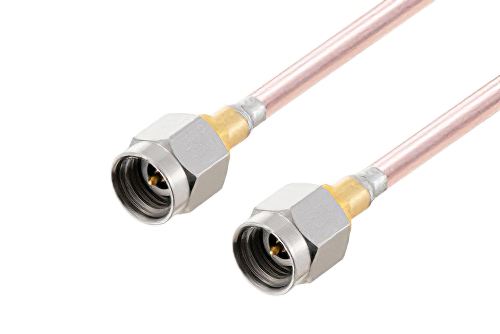

2.92mm Male to 2.92mm Male Cable 48 Inch Length Using PE-118SR Coax

Product ID: PE3W07491-48

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$398.99
25-49$379.04
50-99$359.09
100-249$343.13
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 50
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 12.92mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 22.92mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-118SR
RF Cable TypePE-118SR
RF Cable Impedance50 Ohm
Length48 inches

Description

2.92mm Male to 2.92mm Male Cable 48 Inch Length Using PE-118SR Coax

The PE3W07491-48 is a 2.92mm male to male semi-rigid cable assembly designed for PE-118SR coax, offering 50 Ohm impedance and DC to 45 GHz operation. It supports RF test setups and electronic system integration where stable 2.92mm in-series connections are required across microwave and millimeter wave paths. Beryllium Copper connectors with Gold plating and PTFE dielectric help this assembly maintain 1.4:1 maximum VSWR across its specified range.

Pasternack RF coax cable assembly is built with 2.92mm cable connection on one end and 2.92mm cable connection on the other. Our 2.92mm to 2.92mm cable assemblies have a male gender on end 1 and male on end 2. This 2.92mm to 2.92mm cable is a male to male coax assembly, PE3W07491-48, can also be known as a 2.92mm plug to 2.92mm plug cable assembly and will be shipped same-day as it is purchased.

2.92mm plug to 2.92mm plug cable assembly PE3W07491-48 is built with PE-118SR which is a semi-rigid coax type. The Pasternack semi-rigid 2.92mm cable assembly is manufactured with 2.92mm to 2.92mm cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this 45 GHz maximum frequency 2.92mm male to 2.92mm male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

2.92mm plug to 2.92mm plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality 2.92mm to 2.92mm cable assembly for quick shipment worldwide. Variations of 2.92mm cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this 2.92mm male to 2.92mm male cable 48 inch length using PE-118SR coax.

Frequently Asked Questions

What is the PE3W07491-48 RF cable assembly used for?

The PE3W07491-48 is a 2.92mm male to male semi-rigid RF cable assembly used to connect two standard 2.92mm interfaces. It features PE-118SR coax, 50 Ohm impedance, and DC to 45 GHz operation for broadband microwave and millimeter wave signal paths. Engineers use it in RF test setups, laboratory benches, and integrated electronic systems that require stable in-series interconnects. Its straight connector configuration and semi-rigid construction help support controlled routing where repeatable cable positioning and reliable mating are important.

When would I choose a semi-rigid 2.92mm cable assembly like PE3W07491-48?

You would choose the PE3W07491-48 when an application needs a formed cable path with 2.92mm male connectors on both ends. This assembly combines PE-118SR semi-rigid coax with 50 Ohm impedance, Gold-plated Beryllium Copper contacts, and DC to 45 GHz coverage. It is well suited for fixtures, enclosed RF subsystems, and lab setups where cable movement must be limited. Compared with more flexible cable types, semi-rigid designs help maintain routing consistency in compact microwave and millimeter wave installations.

Is PE3W07491-48 suitable for microwave and millimeter wave test setups?

Yes, the PE3W07491-48 is suitable for microwave and millimeter wave test setups because it operates from DC to 45 GHz. Its 2.92mm male to male interface and 50 Ohm construction support broadband signal transfer across instruments, adapters, and test fixtures. Engineers use assemblies like this in bench measurements where controlled impedance and stable connector geometry matter for repeatable results. The semi-rigid PE-118SR coax also helps maintain fixed cable routing in tighter layouts used for higher-frequency validation work.

How does PE3W07491-48 help with controlled RF cable routing?

The PE3W07491-48 helps with controlled RF cable routing by using PE-118SR semi-rigid coax instead of a more flexible cable type. It pairs straight 2.92mm male connectors with a semi-rigid cable body, which supports defined cable placement in compact assemblies. This is useful in electronic system integration, fixture design, and laboratory setups where routing repeatability affects build consistency. Engineers often select semi-rigid assemblies when they want a cable path that stays in place after installation and mating.
