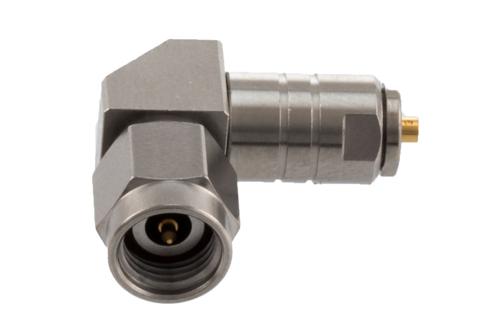

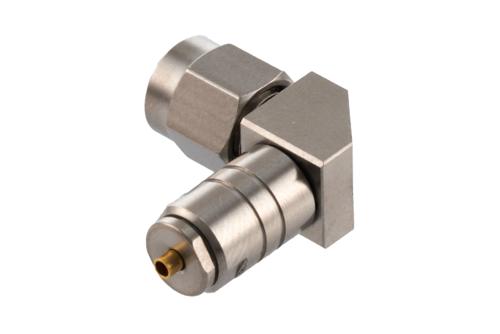

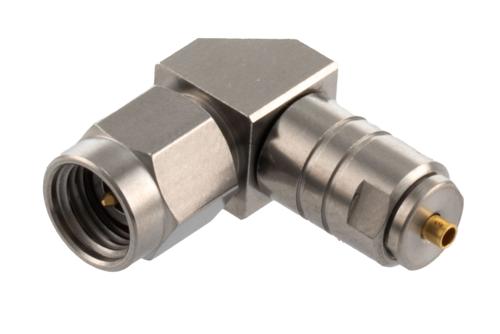

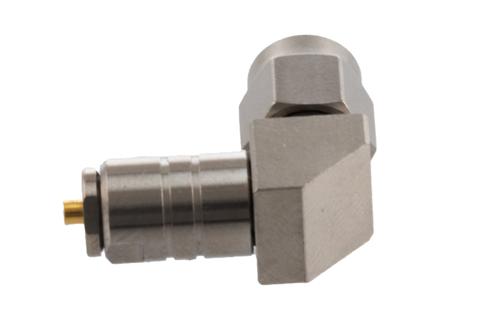

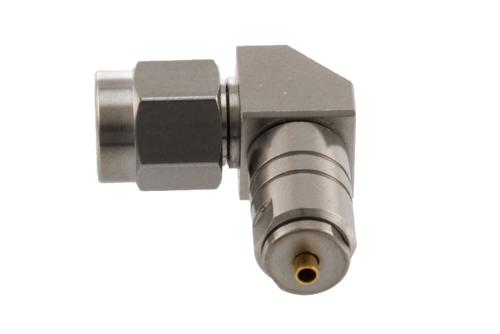

PE51272 2.92mm male right angle coaxial connector has an interface type of 2.92mm male which is compatible with PE-047SR, PE-P047, PE-P047LL, PE-SR047AL, PE-SR047FL and .047 Semi-Rigid cables and has an impedance of 50 Ohms. Pasternack's 2.92mm male connector uses clamp/solder as an attachment method. Our male 2.92mm right angle coaxial connector provides a maximum frequency of 40 GHz. This 2.92mm male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack right angle 2.92mm male coaxial connector has a PPO dielectric type and a VSWR of 1.35:1. Pasternack's 2.92mm coaxial connector has a stainless steel body with passivated plating. Our PE51272 2.92mm right angle connector uses a gold over nickel-plated beryllium copper contact.The Pasternack RF connector block has a maximum inner conductor and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from stainless steel material has a contact life of 5000 cycles or more. The PE51272 2.92mm connector operates at a temperature range of -55 to 105 deg C. This threaded male 2.92mm coaxial RF connector has a maximum insertion loss of 0.253 dB. This right angle 2.92mm connector has a gold over nickel inner contact plating. The Pasternack 2.92mm male connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. It also consists of a beryllium copper retaining ring that meets copper-tin-zinc alloy compliance. Our right angle 2.92mm male connector has a length of 0.704724 inches, a width of 0.291339 inches, and a weight of 0.015 lbs.
This Pasternack right angle male 2.92mm connector will ship the same business day as purchased. Our 2.92mm right angle male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
