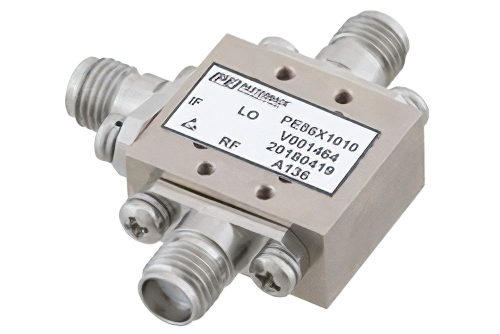

Double Balanced Mixer Operating from 24 GHz to 40 GHz with an IF Range from DC to 18 GHz and LO Power of +13 dBm, Field Replaceable 2.92mm

Product ID: PE86X1010

Pricing

QuantityPrice
1-1$3,450.00
2-4$3,312.00
5-9$3,174.00
10+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 4
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
RF Connector Series2.92mm
RF Connector GenderFemale
LO Connector Series2.92mm
LO Connector GenderFemale
IF Connector SeriesSMA
IF Connector GenderFemale
RF Minimum Frequency24 GHz
RF Maximum Frequency40 GHz
LO Minimum Frequency24 GHz
LO Maximum Frequency40 GHz
IF Minimum FrequencyDC
IF Maximum Frequency18 GHz

Description

Double Balanced Mixer Operating from 24 GHz to 40 GHz with an IF Range from DC to 18 GHz and LO Power of +13 dBm, Field Replaceable 2.92mm

RF double balanced mixer (also referred to as a frequency mixer) PE86X1010 from Pasternack has 2.92mm connector. This 2.92mm double balanced mixer is manufactured with a impedance and has a RF to LO isolation of dB.

This radio frequency double balanced mixer has a RF frequency range of 24 GHz for the minimum and 40 GHz for the maximum. PE86X1010 double balanced frequency mixer LO frequency range is 24 GHz for the minimum and 40 GHz for the maximum. Our frequency mixer that is double balanced has an IF frequency range of DC for a minimum and 18 GHz for a maximum.

Double balanced mixer from Pasternack is rated for a third order intercept point of dBm. This 50 Ohm 2.92mm double balanced frequency mixer is part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our double balanced mixer is in-stock and Pasternack is where to buy your RF mixer components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
