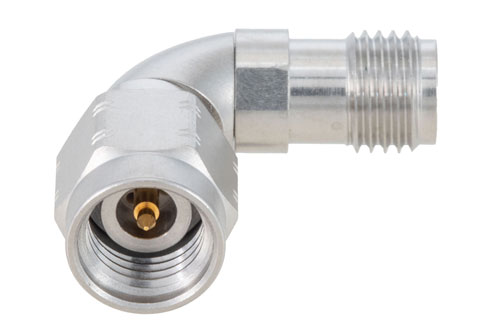

The 2.92mm radius right angle adapter PE91791 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.3:1. This RF adapter has a plug to jack gender configuration, which provides easier connections in tighter spaces. Our 2.92mm to 2.92mm adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 40 GHz. This in-series RF adapter has a dielectric withstanding voltage of 750 Vrms.
This 2.92mm plug to 2.92mm jack adapter is one of the many RF components that ship the same business day as they are ordered. The PE91791 plug 2.92mm to jack 2.92mm adapter has a radius right angle body. This Pasternack radius right angle 2.92mm coax adapter is a 90 degree swept elbow adapter. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.38 dB. This RF adapter has a 0.75-inch length, 0.32-inch width, and 0.01 lbs weight.
The PE91791 adapter from Pasternack is made from a passivated stainless steel connector body and has a beryllium copper center contact. Our 2.92mm plug to 2.92mm jack radius right angle radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this in-series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of radius right angle 2.92mm to 2.92mm radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 40 GHz RF adapter that meets your requirements.
