Low Power SP6T Terminated Electromechanical Relay Switches (<10 Watts)

Check out our new RF calculators & conversion tools...

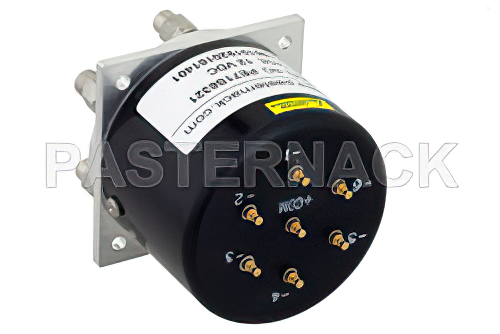

SP6T Electromechanical Relay Latching Switch, Terminated, DC to 40 GHz, 3W, 12V Self Cut Off, Indicators, Reset, 2.92mm

Product ID: PE71S6321
SP6T Electromechanical Relay Latching Switch, Terminated, DC to 40 GHz, 3W, 12V Self Cut Off, Indicators, Reset, 2.92mm


Image Views:  SP6T Electromechanical Relay Latching Switch, Terminated, DC to 40 GHz, 3W, 12V Self Cut Off, Indicators, Reset, 2.92mm high resolution
Zoomalternate image
View 2


Click for:PE71S6321 Datasheet
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-1$8,012.98
2-4$7,532.20
5-9$7,131.55
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series2.92mm
Connector GenderFemale
Switch DesignSP6T
Minimum FrequencyDC
Maximum Frequency40 GHz
Impedance50 Ohm
Maximum Input Power3 Watts
Maximum Insertion Loss1 dB


SP6T Electromechanical Relay Latching Switch, Terminated, DC to 40 GHz, 3W, 12V Self Cut Off, Indicators, Reset, 2.92mm

PE71S6321 electromechanical RF relay switch from Pasternack is a SP6T design. Our SP6T electromechanical RF switch uses 2.92mm connectors at 50 Ohm. This 2.92mm RF relay SP6T switch has a maximum frequency of 40 GHz and maximum power of 3 Watts. The Pasternack radio frequency SP6T 2.92mm electro-mechanical relay switch is rated at a control voltage of 12 Volts, indicator voltage and switching speed of 15ns.

2.92mm SP6T electro mechanical RF relay switch features Self Cut Off, Indicators, Reset with an isolation minimum of dB. SP6T electromechanical relay radio frequency switch PE71S6321 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SP6T 2.92mm coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
