Medium Power SPDT Electromechanical Relay Switches

Check out our new RF calculators & conversion tools...

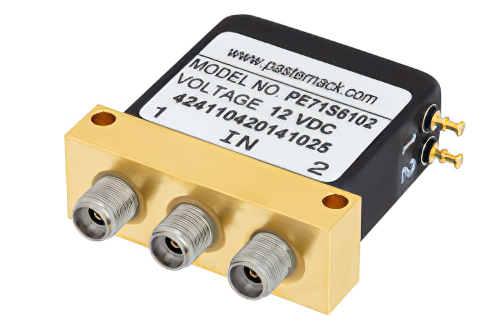

SPDT Electromechanical Relay Failsafe Switch, DC to 40 GHz, 10W, 12V, 2.92mm

Product ID: PE71S6102
SPDT Electromechanical Relay Failsafe Switch, DC to 40 GHz, 10W, 12V, 2.92mm


Image Views:  SPDT Electromechanical Relay Failsafe Switch, DC to 40 GHz, 10W, 12V, 2.92mm high resolution
Zoomalternate image

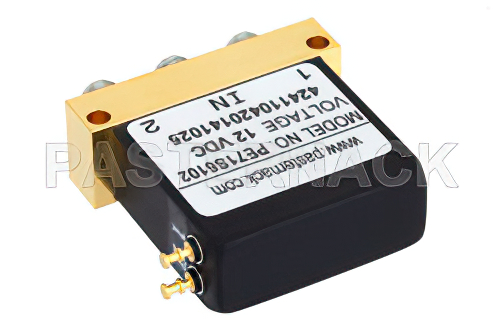

View 2


Click for:PE71S6102 Datasheet
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-1$2,089.95
2-4$2,006.35
5-9$1,922.75
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series2.92mm
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency40 GHz
Impedance50 Ohm
Maximum Input Power (CW)10 Watts
Maximum VSWR1.9:1
Maximum Insertion Loss0.8 dB
Minimum Isolation50 dB


SPDT Electromechanical Relay Failsafe Switch, DC to 40 GHz, 10W, 12V, 2.92mm

PE71S6102 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses 2.92mm connectors at 50 Ohm. This 2.92mm RF relay SPDT switch has a maximum frequency of 40 GHz and maximum power of 10 Watts. The Pasternack radio frequency SPDT 2.92mm electro-mechanical relay switch is rated at a control voltage of 12 Volts, indicator voltage and switching speed of 15ms.

2.92mm SPDT electro mechanical RF relay switch features with an isolation minimum of 50 dB. SPDT electromechanical relay radio frequency switch PE71S6102 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT 2.92mm coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
