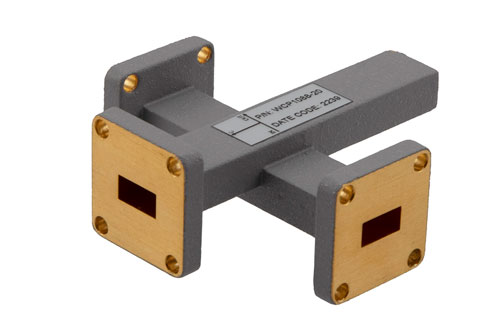

WR-34 Waveguide 20 dB Crossguide Coupler, UG Cover Flange, UG Cover Flange Coupled, 25 GHz to 28 GHz, Brass

Name: WR-34 Waveguide 20 dB Crossguide Coupler, UG Cover Flange, UG Cover Flange Coupled, 25 GHz to 28 GHz, Brass
Brand: Pasternack
SKU: PEWCP1088-20
Availability: InStock

Product ID: PEWCP1088-20

Pricing

Quantity	Price
1-4	$1,830.00
5-9	$1,756.80
10-24	$1,683.60
25-99	$1,610.40
100+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 2

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications.
Waveguide Size	WR-34
Flange Size	None
Flange Type	UG Cover
Minimum Frequency	25 GHz
Maximum Frequency	28 GHz
Maximum VSWR	1.25:1
Coupling	20 dB

Description

WR-34 Waveguide 20 dB Crossguide Coupler, UG Cover Flange, UG Cover Flange Coupled, 25 GHz to 28 GHz, Brass

The PEWCP1088-20 is a 20 dB WR-34 three port crossguide coupler with intergrated UG Cover flange for the coupled port. This coupler can be mounted directly into the waveguide signal path, connected via waveguide to allow signal sampling /monitoring. The coupler has a typical VSWR of 1.1:1 and are made of Brass with UG Cover flanges. The PEWCP1081-40 is part of a family of cross guide couplers offered by Pasternack with coupling values ranging from 20 to 50 dB.
