26 dBm P1dB, 2 GHz to 20 GHz, Medium Power Broadband Amplifier, 31 dB Gain, 30 dBm IP3, 3 dB NF, SMA

Product ID: PE15A4030
26 dBm P1dB, 2 GHz to 20 GHz, Medium Power Broadband Amplifier, 31 dB Gain, 30 dBm IP3, 3 dB NF, SMA

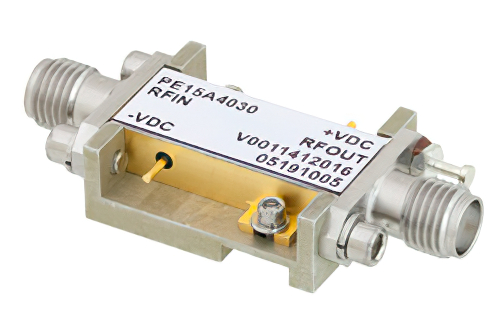

Image Views:  26 dBm P1dB, 2 GHz to 20 GHz, Medium Power Broadband Amplifier, 31 dB Gain, 30 dBm IP3, 3 dB NF, SMA high resolution
Zoomalternate image
View 2


Click for:PE15A4030 Datasheet
Click for:PE15A4030 RoHS Cert
Available Quantity: 6
Pricing Table
QUANTITYPRICE
1-1$3,774.49
2-4$3,548.02
5-9$3,359.30
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output26 dBm P1dB
Frequency, Min2 GHz
Frequency, Max20 GHz
Gain, Typical31 dB
3rd Intercept Point30 dB
Connector SeriesSMA


26 dBm P1dB, 2 GHz to 20 GHz, Medium Power Broadband Amplifier, 31 dB Gain, 30 dBm IP3, 3 dB NF, SMA

PE15A4030 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses SMA connectors at 50 Ohm. This SMA broadband amplifier has wide-band capability with a minimum frequency of 2 GHz and maximum frequency of 20 GHz. The typical gain of this broad-band radio frequency amplifier is 31 dB.

Pasternack broadband amplifier PE15A4030 is rated at 26 dBm P1dB. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
