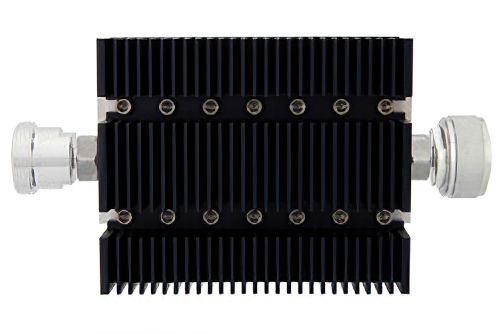

20 dB Fixed Attenuator, 7/16 DIN Female To 7/16 DIN Male Directional Black Anodized Aluminum Heatsink Body Rated To 100 Watts Up To 6 GHz

Name: 20 dB Fixed Attenuator, 7/16 DIN Female To 7/16 DIN Male Directional Black Anodized Aluminum Heatsink Body Rated To 100 Watts Up To 6 GHz
Brand: Pasternack
SKU: PE7201-20
Availability: InStock

Product ID: PE7201-20

Pricing

Quantity	Price
1-4	$1,080.00
5-9	$1,026.00
10-24	$972.00
25+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 8

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Design	Fixed
Maximum Frequency	6 GHz
Impedance	50 Ohm
Power Maximum	100 Watt
VSWR Maximum	1.45:1
Attenuation	20 dB
Connector Series 1	7/16 DIN
Connector Gender 1	Female
Connector Series 2	7/16 DIN
Connector Gender 2	Male
Body Material	Black Anodized Aluminum Heatsink

Description

20 dB Fixed Attenuator, 7/16 DIN Female To 7/16 DIN Male Directional Black Anodized Aluminum Heatsink Body Rated To 100 Watts Up To 6 GHz

PE7201-20 is a fixed 20 dB attenuator from Pasternack. This 20dB attenuator is an in-line, resistive PI attenuator pad design. Our coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications.

This 7/16 DIN attenuator has a female gender on side 1 and a 7/16 DIN male connector on side 2. The Pasternack PE7201-20 20 dB attenuator is rated for up to 6 GHz. Our microwave attenuator is rated to 100 Watts at the stated attenuation value.

Our fixed RF attenuator PE7201-20 is shipped same-day as purchased from Pasternack's production facility certified to ISO 9001:2015. This 20dB attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
