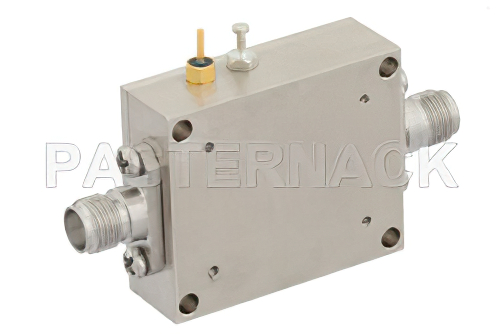

600 mW Psat, 2 GHz to 24 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 35 dBm IP3, 2.92mm

Product ID: PE15A3009
600 mW Psat, 2 GHz to 24 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 35 dBm IP3, 2.92mm


Image Views:  600 mW Psat, 2 GHz to 24 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 35 dBm IP3, 2.92mm high resolution
Zoomalternate image
View 2


Click for:PE15A3009 Datasheet
Click for:PE15A3009 RoHS Cert
Click for:PE15A3009 REACH Cert
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-1$2,042.49
2-4$1,919.94
5-9$1,817.82
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output600 mW (28 dBm) Psat
Frequency, Min2 GHz
Frequency, Max24 GHz
Gain, Min10 dB
Gain, Typical12 dB
Gain Flatness0.75 dB
3rd Intercept Point35 dB
RF Input VSWR Max2.2:1
RF Output VSWR Max2.2:1
Connector Series2.92mm


600 mW Psat, 2 GHz to 24 GHz, Medium Power Broadband Amplifier, 12 dB Gain, 35 dBm IP3, 2.92mm

PE15A3009 medium power broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized medium power broadband amplifier uses 2.92mm connectors at 50 Ohm. This 2.92mm broadband amplifier has wide-band capability with a minimum frequency of 2 GHz and maximum frequency of 24 GHz. The minimum gain of this broad-band radio frequency amplifier is 10 dB with a typical gain of 12 dB.

Pasternack broadband amplifier PE15A3009 is rated at 600 mW (28 dBm) Psat, 2.2:1 input VSWR maximum and 2.2:1 output VSWR max. Our broad band radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
