Standard 7/16 DIN 25 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

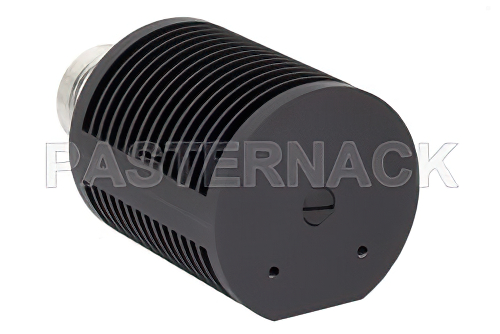

25 Watt RF Load Up To 8 GHz With 7/16 DIN Female Input Round Body Black Anodized Aluminum Heatsink

Product ID: PE6210
25 Watt RF Load Up To 8 GHz With 7/16 DIN Female Input Round Body Black Anodized Aluminum Heatsink


Image Views:  25 Watt RF Load Up To 8 GHz With 7/16 DIN Female Input Round Body Black Anodized Aluminum Heatsink high resolution
Zoomalternate image
View 2


Click for:PE6210 Datasheet
Available Quantity: 43
Pricing Table
QUANTITYPRICE
1-9$329.28
10-24$312.82
25-49$296.35
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector Series7/16 DIN
Connector GenderFemale
Minimum FrequencyDC
Maximum Frequency8 GHz
Impedance50 Ohm
Maximum VSWR1.6:1
Maximum Power25 Watt


25 Watt RF Load Up To 8 GHz With 7/16 DIN Female Input Round Body Black Anodized Aluminum Heatsink

PE6210 25 Watts RF load (also known as termination or dummy load) has a 7/16 DIN connector that is female. This Pasternack 25 watts 7/16 DIN female load / termination is rated for a maximum frequency of 8 GHz. Our 7/16 DIN female termination load is a rf load termination with a 50 Ohm impedance.

This 7/16 DIN load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm 7/16 DIN coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.6:1. PE6210 25 watts 7/16 DIN female load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 7/16 DIN female 25 watts termination load will ship worldwide the same day as purchased.
